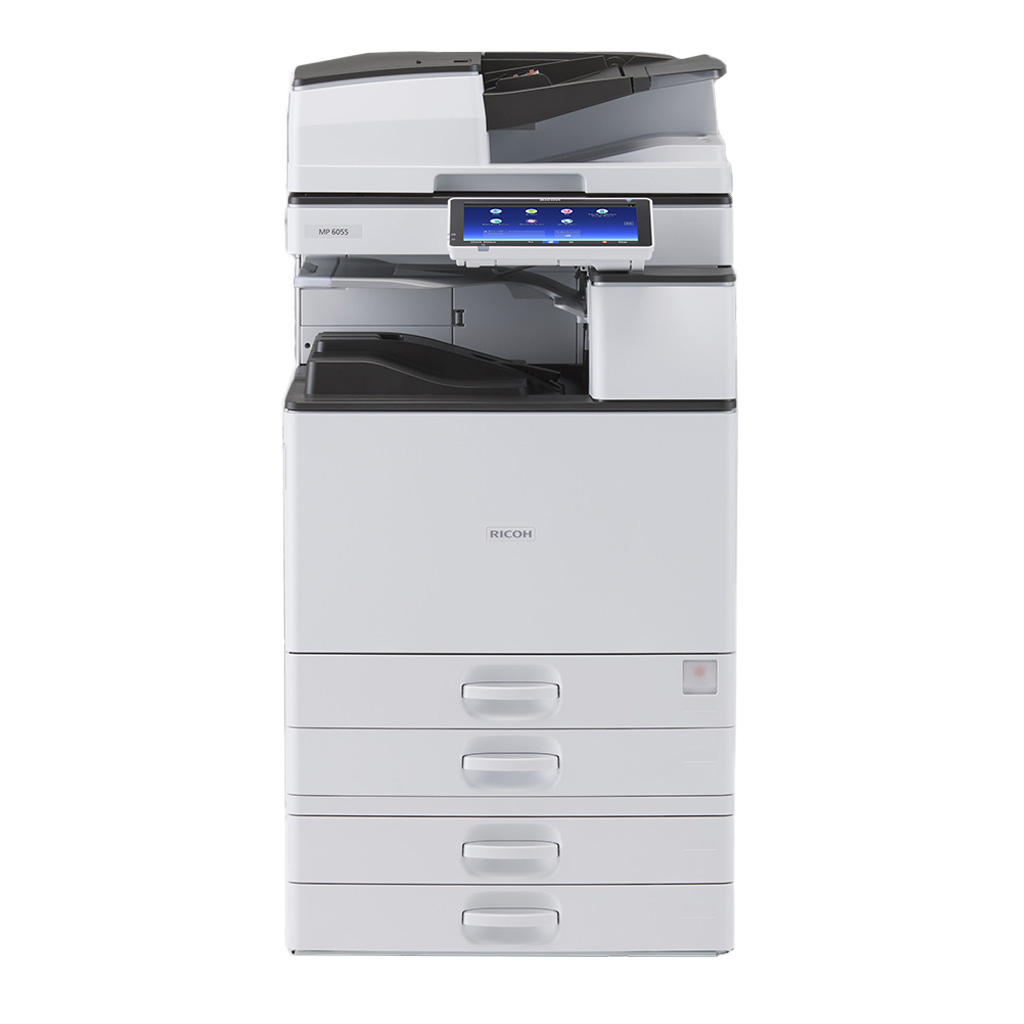

MP 6055SP

A3 black and white MFP

  • Copy, print, scan, and optional fax
  • Prints up to 60 ppm
  • 1,200 x 1,200 dpi
  • 2.8 kWh TEC

All-in-one printing meets app functionality. The MP 6055SP combines fast printing in house with the ability to boost office productivity.

Extend your all-in-one options

Turn paper files into digital deliveries via email or network folder. Set your documents on the single pass duplex document feeder for fast scanning at 220 images per minute. Download single function apps from Ricoh to automate everyday tasks with a single touch. The Smart Operation Panel helps with its intuitive touch interface to save time when setting jobs. Access 3,000 frequently used files with the built-in document server. High resolution print jobs can be folded or collated and stapled in one pass, producing professionally finished documents.

Apps to make it easier

Share information and print from your smartphone or tablet with the Ricoh Smart Device Connector app. It can access documents from cloud applications like Google Drive, Dropbox and OneDrive. The Connector App also allows smartphone or tablet, printing device, projector and white boards all to communicate with one another. It’s available for both Android and iOS.

  1. Simplify your work
    Create shortcuts to your favourite settings with the Smart Operation Panel.
  2. Keep data safe
    Information is kept secure with data encryption, the DataOverwriteSecurity System and User Authentication.
  3. Powerful technology
    Intel processor, 2GB memory and 320GB hard drive easily handles big files.
  4. High quality
    Documents are set to impress with 1200 x 1200 dpi resolution.
Download PDF brochure


Specifications

Functions
Copy, print, scan, optional fax
Colour
No
HDD
320 GB
Memory - standard
2 GB
Operation panel
10.1-inch tilting colour WSVGA Smart Operation Panel
Physical dimensions (WxDxH)—mainframe
587 x 684 x 963 mm
Weight—mainframe
76.5 kg or less
Standard input capacity (sheets)
1,200
Maximum input capacity (sheets)
4,700
Standard output capacity (sheets)
500
Maximum output capacity (sheets)
3,625
Paper input configuration - standard
2 x 550-sheet paper trays, 100-sheet bypass tray, 220-sheet SPDF DF3100, duplex unit
Paper output configuration - standard
500-sheet face-down internal output tray
Supported media

Standard paper input trays
Plain paper, recycled paper, colour paper, special paper, letterhead, pre-printed paper, pre-punched paper, bond paper, cardstock, plain paper backside, envelopes, thin paper, plain paper 1, plain paper 2, middle thick paper, thick paper 1–4

Optional paper banks
Plain paper, recycled paper, colour paper, special paper, letterhead, pre-printed paper, pre-punched paper, bond paper, cardstock, plain paper backside, thin paper, plain paper 1, plain paper 2, middle thick paper, thick paper 1–4

Bypass tray
Plain paper, recycled paper, colour paper, special paper, letterhead, pre-printed paper, pre-punched paper, bond paper, cardstock, plain paper backside, envelopes, OHP transparencies, label paper, thin paper, plain paper 1, plain paper 2, middle thick paper, thick paper 1–4
Maximum paper size
A3
Media weight (g/m2)
52–300
Interfaces - standard
Mainframe
10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
USB 2.0 Host Type A—2 ports
NFC tag

Smart Operation Panel
IEEE 802.11b/g/n (Wireless LAN)
Bluetooth 4.0
SD card slot
USB Host Type A—USB Flash memory
USB Host Type A—External keyboard
USB Host Type mini B—NFC card reader
Interfaces - optional
IEEE 1284/ECP
IEEE 802.11a/g/n (Wireless LAN)
USB 2.0 Type B
Network protocols - standard
TCP/IP (IPv4, IPv6)
Copy speed
60 cpm
First copy time
2.9 seconds
Copy resolution
600 x 600 dpi
Zoom range
25%–400% in 1% steps
Enlargement ratios
115%, 122%, 141%, 200%, 400%
Reduction ratios
93%, 82%, 75%, 71%, 65%, 50%, 25%
Duplex copy
Single-sided to duplex, duplex to duplex—with document feeder, book to duplex, front and back to duplex
Book copy
Booklet, magazine, layout, and booklet
ID card copy
Supported
User codes
1,000 user codes, 8 digits in each code
Print speed black and white
60 ppm
Print resolution
1,200 x 1,200 dpi—1-bit
Page description languages (PDLs)

Standard
PCL 5e, PCL 6, PostScript 3 emulation, PDF Direct emulation

Optional
Adobe PostScript 3, PDF Direct from Adobe

Printer drivers

Standard
PCL 5e, PCL 6, PostScript 3 emulation

Optional
Adobe PostScript 3

Duplex printing
Standard
Mobile printing
Yes
Print from USB/SD
Supported
Scan speed
A4 LEF, 200 x 200 dpi, 300 x 300 dpi
SPDF

110 ipm—single-sided
180 ipm—duplex
Scan methods
Scan to USB/SD, Scan to email, Scan to webmail,
Scan to folder (SMB, FTP), Scan to PDF/A, Scan to URL, Scan to searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.
Colour scanning
Standard
Scan resolution
100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi,
600 x 600 dpi; default 200 x 200 dpi
Scan to file types

Single- and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF, PDF/A
Single- and multi-page high compression PDF

Scan to email

Protocols
SMTP gateway, POP, IMAP4

Authentication
SMTP authentication, POP before SMTP authentication

Scan resolution
100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

Scan to email file types
Single-page
TIFF, JPEG, PDF, PDF/A, high compression PDF, encrypted PDF, searchable PDF

Multi-page
TIFF, PDF, PDF/A, high compression PDF, encrypted PDF, searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

Scan to folder

Protocols
SMB, FTP

Security
Client folder logon, transmission encryption of logon name and password

Resolution
100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

Search for client folders
SMB—browsing directly to the designated folder
FTP—by folder name

Scan to folders file types
Single-page
TIFF, JPEG, PDF, PDF/A, high compression PDF, encrypted PDF, searchable PDF

Multi-page
TIFF, PDF, PDF/A, high compression PDF, encrypted PDF, searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

TWAIN scanning

Scan mode
Standard, Photo, OCR, Filing

Scan resolution
100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi, 1,200 x 1,200 dpi

Note: Selectable maximum resolution depends on the original size.

Fax types
G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
Fax circuit
PSTN, PBX
Fax compatibilty
ITU-T (CCITT), G3—maximum 3 lines
Fax modem speed
2,400 bps–33.6 Kbps—G3, standard with automatic shift down
Fax compression methods
MH, MR, MMR, JBIG
Fax resolution

Standard mode
100 x 200 dpi—8 x 3.85 lines/mm

Detail mode
200 x 200 dpi—8 x 7.7 lines/mm

Super fine mode
400 x 400 dpi—8 x 15.4 lines/mm
400 x 400 dpi—16 x 15.4 lines/mm

Note: Super fine mode is supported with the optional SAF memory.

G3 fax transmission speed
100 x 200 dpi
2 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission
Fax SAF memory capacity

Standard
4 MB—approximately 320 pages

With optional SAF memory
60 MB—approximately 4,800 pages

Fax memory backup
1 hour—with optional SAF memory
Quick dials
2,000 numbers
DataOverwriteSecurity System (DOSS) – Standard
Yes
Encryption
HDD, PDF, Secure print encryption
Address book, authentication password encryption
Encryption of data sent via Scan to email and Fax forwarding (S/MIME)
Authentication
DHCP option 60 and 77
802.1x wired authentication
Administrator authentication
IEEE 802.11i security (WPA2, WEP)
IPv6
Quota setting
User authentication—Windows and LDAP via Kerberos, basic, user code
WiFi Protected Setup (WPS) support
Network user authentication
Windows
Windows Vista
Windows Server 2008
Windows Server 2008 R2
Windows 7
Windows 8
Windows 8.1
Windows Server 2012
Windows Server 2012 R2
Windows 10
Macintosh
OS X Native v10.9 or later—PostScript 3 only
Unix
Sun Solaris—9, 10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise, 4, 5, 6
SCO OpenServer—5.0.7, 6.0
IBM AIX—5L Version 5.3, 6.1, 7.1
SAP
Environment—R/3 3.0 and higher
Platform—SAP R/3, SAP R/3 Enterprise, mySAP ERP, SAP HANA
PDL—PCL
Character set—Latin-1, Latin-2, Unicode
Document types—SAPScript, Smartforms, ABAP
Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5 interleaved/Industrial/Matrix, MSI, USPS, UPC/EAN
OCR fonts—OCR A, OCR B
IBM
AS/400, iSeries—OS/400
Standard
@Remote Embedded
Java SDK
Web Image Monitor
Optional
@Remote Office
Card Authentication Package
Card Authentication Package Server
Device Manager NX
FlexRelease CX
Enhanced Locked Print NX
Enhanced Locked Print NX FlexRelease Server
GlobalScan NX
Printer Driver Packager NX
Streamline NX
Printer as a Service (PaaS)
Mobile apps
Smart Device Connector
Smart Device Print&Scan
Power source
220-240 V, 50-60 Hz, 8 Amps—Asia Pacific
110 V, 60 Hz, 13.6 Amps—Taiwan
Power consumption
1,780 W or less—maximum
821.7 W—operating power
48.8 W—Ready Mode
0.82 W—Energy Saver Mode (Sleep Mode)
Typical Electricity Consumption (TEC)
2.8 kWh
Warm-up time
20 seconds
Power saving mode
60 seconds shift time—Energy Saver Mode (Sleep Mode)
Recovery time
8.8 seconds—Energy Saver Mode (Sleep Mode)
Other environmental features
Eco-friendly indicator, On/off timer, Remote Power Off, Default duplex printing, Eco counter
