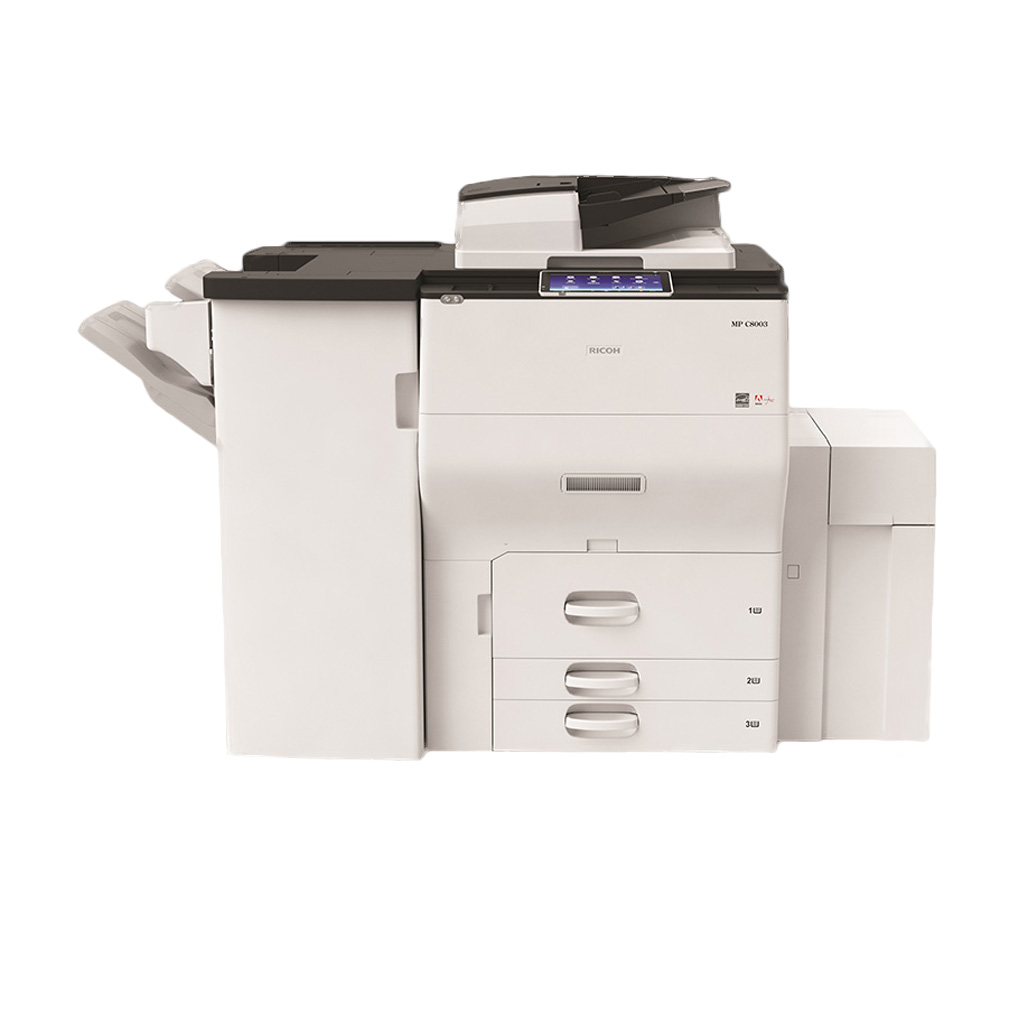

MP C8003SP A3 colour multifunction printer
- Copy, print, scan, optional fax
- Prints up to 80 ppm
- 1,200 x 4,800 dpi
- 8,100-sheet max input
Impressive printing in vibrant colour, at production pace. The MP C8003SP is the one-stop shop to affordably print more, without sacrificing quality.
The high volume, one-stop shop
A low total cost of ownership comes in a reliable device. Add colour to customer communications for added impact and improved response rates. Motion sensors respond to touch, but shut down when not in use. Print images that pop with an ultra fine toner. Give it the night shift and schedule large jobs to run overnight or on the weekend.
Think less, do more
Using the Smart Operation Panel it’s easy to set complicated print, scan or fax jobs. You can produce documents such as booklet printing from a USB/SD card for added convenience. All this is backed by Ricoh’s GWNX controller and a fast 1.91 GHz Intel processor, powering through big jobs without fuss.
- Outstanding quality
Ultra fine toner produces vibrant prints. - Powerful under the hood
Ricoh’s super fast internal processor and controller manages workflow and accounts for usage. - Fast functionality
The Smart Operation Panel includes easy to use copy, scan, fax and print apps. - Fully finished options
High-speed duplex feeder combines with fold, staple, hole punch and booklet making.
Specifications
- Functions
- Copy, print, scan, optional fax
- Colour
- Yes
- HDD
- 640 GB (320 GB x 2)
240 GB—space available on each HDD - Memory - standard
- 4 GB
- Operation panel
- 10.1-inch Smart Operation Panel
- Physical dimensions (WxDxH)—mainframe
- 750 x 880 x 1,225 mm
- Weight—mainframe
- 250 kg or less
- Standard input capacity (sheets)
- 3,700
- Maximum input capacity (sheets)
- 8,100
- Maximum output capacity (sheets)
- 3,500
- Paper input configuration - standard
- 1,250-sheet x 2 tandem tray, 2 x 550-sheet paper input trays, 100-sheet bypass tray, 220-sheet SPDF, Duplex unit
- Supported media
Standard paper input tray 1
Plain paper1, recycled paper, colour paper, special paper 1–3, letterhead, pre-printed paper, pre-punched paper, bond paper, card stock, thin paper, plain paper 1–2, middle thick, thick paper 1–4
Standard paper input trays 2 and 3
Plain paper1, recycled paper, colour paper, special paper 1–3, letterhead, pre-printed paper, pre-punched paper, bond paper, card stock, tab stock, envelope, thin paper, plain paper 1–2, middle thick, thick paper 1–4Note: Middle thick and thick paper 1–4 are supported for tab stock and envelopes. The optional Tab sheet holder is required to feed tab sheets from trays 2 and 3.
Bypass tray
Plain paper1, recycled paper, colour paper, special paper 1-3, letterhead, pre-printed paper, pre-punched paper, bond paper, card stock, tab stock, envelope, OHP transparencies, label, thin paper, plain paper 1–2, middle thick, thick paper 1–4Note: Middle thick and thick paper 1–4 are supported for tab stock and envelopes.
1—Not displayed as paper type- Maximum paper size
- 13" x 19.2"
- Media weight (g/m2)
- 52–300
- Interfaces - standard
- Mainframe
10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
USB Host Type A2—2 ports
Card slot—1 slot, supports controller accessories
Smart Operation Panel
IEEE 802.11b/g/n (Wireless LAN)1—2.4 GHz band only
Bluetooth 4.0¹
SD card slot— supports SDHC memory card
USB Host Type A—for USB Flash memory
USB Host Type A—for External keyboard¹
USB Host Type Mini B—for NFC card reader¹
NFC tag SO14443 Type A (NFC Forum Type 2 compliant)¹
¹—Does not support printing functions - Interfaces - optional
- Mainframe
IEEE 1284
IEEE 802.11a/b/g/n (Wireless LAN)
USB Device Server (additional network interface port) - Network protocols - standard
- TCP/IP (IPv4, IPv6)
- Copy speed
- 80 cpm—A4 LEF
- First copy time
- 4.7 seconds or less—black and white
6.3 seconds or less—colour - Copy resolution
- 600 x 600 dpi—4 bit
- Zoom range
- 25%–400% in 1% steps
- Duplex copy
- Single-sided to duplex, duplex to duplex (via SPDF), book to duplex, front and back cover to duplex
- Book copy
- Booklet, magazine, layout and booklet
- ID card copy
- Supported
- User codes
- 1,000 user codes, 8 digits in each code
- Print speed colour
- 80 ppm
- Print speed black and white
- 80 ppm
- Print resolution
- 1,200 x 4,800 dpi
- Printer drivers
Standard
PCL 5c, PCL 6, XPS
Note: The XPS driver can be downloaded from the Ricoh website.
Universal printer driver
Optional
PostScript 3
PCL 6 and PostScript 3- Duplex printing
- Standard
- Mobile printing
- Yes
- Print from USB/SD
- Supported
- Scan speed
- Black and white—200 x 200 dpi, 300 x 300 dpi, 1-bit
120 ipm—single-sided
220 ipm—duplex
Colour—200 x 200 dpi, 300 x 300 dpi, 4-bit
120 ipm—single-sided
220 ipm—duplex - Scan methods
- Scan to email, Scan to webmail, Scan to folders (SMB, FTP), Scan to PDF/A, Scan to URL, Scan to searchable PDF
Note: Optional OCR unit is required to support scanning to a searchable PDF. - Colour scanning
- Standard
- Scan resolution
- 100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi,
400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi - Scan to file types
- Single- and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF, PDF/A
Single- and multi-page high compression PDF - Scan to email
Protocols
SMTP gateway, TCP/IP
Authentication
SMTP authentication, POP before SMTP authentication
Scan resolution
100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi,
400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi
Scan to email file types
Single-page
TIFF, JPEG, PDF, PDF/A, high compression PDF, encrypted PDF, searchable PDF
Multi page
TIFF, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF
Note: Optional OCR unit is required to support scanning to a searchable PDF.- Scan to folder
Protocols
SMB, FTP
Security
Client folder logon, transmission encryption of logon name and password
Resolution
100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi,
400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi
Search for client folders
SMB—browsing directly to the designated folder
FTP—by folder name
Scan to folders file types
Single-page
TIFF, JPEG, PDF, PDF/A, high compression PDFMulti page
TIFF, PDF, PDF/A, high-compression PDF- TWAIN scanning
- Scan mode
Standard, Photo, OCR, Filing
Scan resolution
100–1,200 dpi
- Fax types
- G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
- Fax circuit
- PSTN, PBX
- Fax compatibilty
- ITU-T (CCITT), G3—maximum 3 lines
- Fax modem speed
- 2,400 bps–33.6 Kbps—G3, standard with automatic shift down
- Fax compression methods
- MH, MR, MMR, JBIG
- Fax resolution
Standard mode
100 x 200 dpi—8 x 3.85 lines/mm
Detail mode
200 x 200 dpi—8 x 7.7 lines/mm
Super fine mode
400 x 400 dpi—8 x 15.4 lines/mm
400 x 400 dpi—16 x 15.4 lines/mmNote: Super fine mode is supported with the optional SAF memory.
- G3 fax transmission speed
- 2 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission - Fax SAF memory capacity
- Standard
4 MB—approximately 320 pages
With optional SAF memory
60 MB—approximately 4,800 pages - Fax memory backup
- 1 hour
- Quick dials
- 2,000 numbers
- Data Overwrite Security System (DOSS) - Standard
- Yes
- Data Overwrite Security System (DOSS) - Optional
- Type M19—available for customers who require their devices to comply with ISO 15408 Common Criteria certification
- Encryption
- HDD, PDF, Secure print, WEP, WPA encryption
Address book, authentication password encryption
Encryption of data sent via Scan to email and Fax forwarding (S/MIME) - Authentication
- 802.1x wired authentication
Administrator authentication
IEEE 802.11i security (WPA2)
IPv6
Network user authentication
Quota setting
User authentication—Windows and LDAP via Kerberos, basic, user code
WiFi Protected Setup (WPS) support
- Windows
- PCL 5c, PCL 6, and PostScript 3
Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows Server 2003
Windows Server 2003 R2
Windows Server 2008
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows 10 - Macintosh
- OS X Native v10.7 or later—PostScript 3 only
- Unix
- Sun Solaris—9, 10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise, 4.x, 5.x, 6.x
SCO OpenServer—5.0.7, 6.0
IBM AIX—5L Version 5.3, 6.1, 7.1 - SAP
- Environment—R/3
SAP R/3 Device Type—supported
PDL—PCL
Character set—Latin 1, Latin 2, Unicode
Printing of all SAP documents (SAPScript, Smartforms, ABAP)—supported
Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5, MSI, USPS Postnet, UPC/EAN
OCR fonts—OCR A, OCR B - IBM
- AS/400, iSeries—OS/400
- Standard
- @Remote Embedded
Java SDK
Web Image Monitor - Optional
- @Remote Connector NX
Ricoh Scan CX
FlexRelease CX
Device Software Manager
Device Manager NX
GlobalScan NX
Printer Driver Packager NX
Streamline NX - Mobile apps
- Smart Device Connector
Smart Device Print&Scan
- Power source
- 220–240 V, 50–60 Hz
- Power consumption
- 2,400 W or less—maximum power
1,380 W or less—operating power, black and white
1,526 W or less—operating power, colour
199 W—Ready Mode
182 W—Low Power Mode
0.89 W—Energy Saver Mode (Sleep Mode) - Typical Electricity Consumption (TEC)
- 6.2 kWh
- Warm-up time
- 38 seconds
- Power saving mode
- 60 minutes shift time—Energy Saver Mode (Sleep Mode)
15 minutes shift time—Low Power Mode - Recovery time
- 38 seconds—Energy Save Mode
9.5 seconds—Low Power Mode - Green labels
- Blue Angel Mark (BAM)
- Other environmental features
- Eco-friendly indicator, Auto off timer, Energy Saver Timer, Remote Power Off, Default duplex printing, Eco counter, Human Detection Sensor
