The IM 2702 is positioned as a budget friendly device that comes with a host of improved features, making it easier to use and connect to, while at the same time increase productivity.
Compared with its predecessor, the IM 2702 offers a faster print speed at 27 ppm, larger standard paper tray, as well as a new generation (G2.5) 7” Smart Operation Panel.
It also provides numerous connectivity features as standard, including wired Ethernet to wireless networking. Mobile printing is supported via AirPrint, Mopria®, and Wi-Fi Direct.
Additionally, the IM 2702 comes with an ARDF as standard to boost productivity.

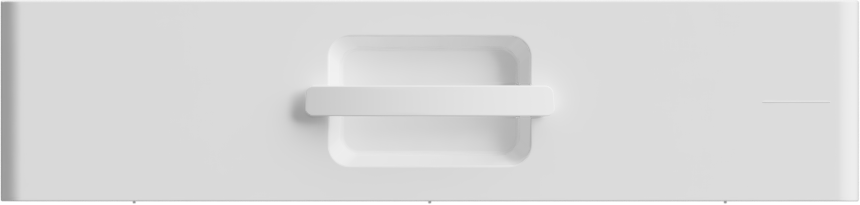

Paper Feed Unit PB2030
Optional 1-tray paper feed unit that increases the paper capacity of the device.
Capacity: 500 sheets Paper size: B5–A3 Paper weight: 60–105 g/m2 Dimensions (W x D x H): 587 x 556.2 x 140 mm Weight: 12 kg Power consumption: 18 W or less
Notes:
Cannot be installed with Paper Feed Unit PB2040
Paper Feed Unit PB2040
Optional 2-tray paper feed unit that increases the paper capacity of the device.
Capacity: 1,000 (2 x 500) sheets Paper size: B5–A3 Paper weight: 60–105 g/m2 Dimensions (W x D x H): 587 x 556.2 x 340.6 mm Weight: 30 kg Power consumption: 36 W or less
Notes:
Cannot be installed with Paper Feed Unit PB2030
Bypass Tray Cover Type M16
Protects paper in the bypass tray in dusty environments.
1-Bin Tray BN2020
Collects output from a device and usually fits inside the face-down output tray.
Capacity: 50 sheets Paper size: A6–A3 Paper weight: 60–105 g/m2 Dimensions (W x D x H): 416 x 84 x 425 mm Weight: 2 kg or less Power consumption: 7.9 W or less
ADF Handle Type C
Assists seated users or users with arm injuries to open and close an automatic document feeder.
Fax Option Type M38
Enables fax services: 33.6 kbps, approximately 3 second transmission speed, and standard 4 MB memory.
Includes standard LAN fax and Fax forwarding to email.
Marker Type 30
A refill ink for ADF verification stamp that places a small mark on each page scanned or sent in immediate Transmission Mode.
4 markers/box
Yield: 12,000 pages
Notes:
By choosing this option the Fax Option Type M38 will be added to the configuration.
NFC Card Reader Type M38
Ricoh card reader that supports authentication via Near Field Communication (NFC) technology. It can be used with Ricoh devices that are equipped with the 10.1" Smart Operation Panel that have standard authentication embedded.
Standard inclusions
7" Smart Operation Panel
Mobile printing
100-sheet ARDF
500-sheet input tray + 100-sheet bypass tray
PostScript3 emulation
Current configuration
IM 2702
587 mm x581 mm x677 mm (W x D x H)
46.5 kg
