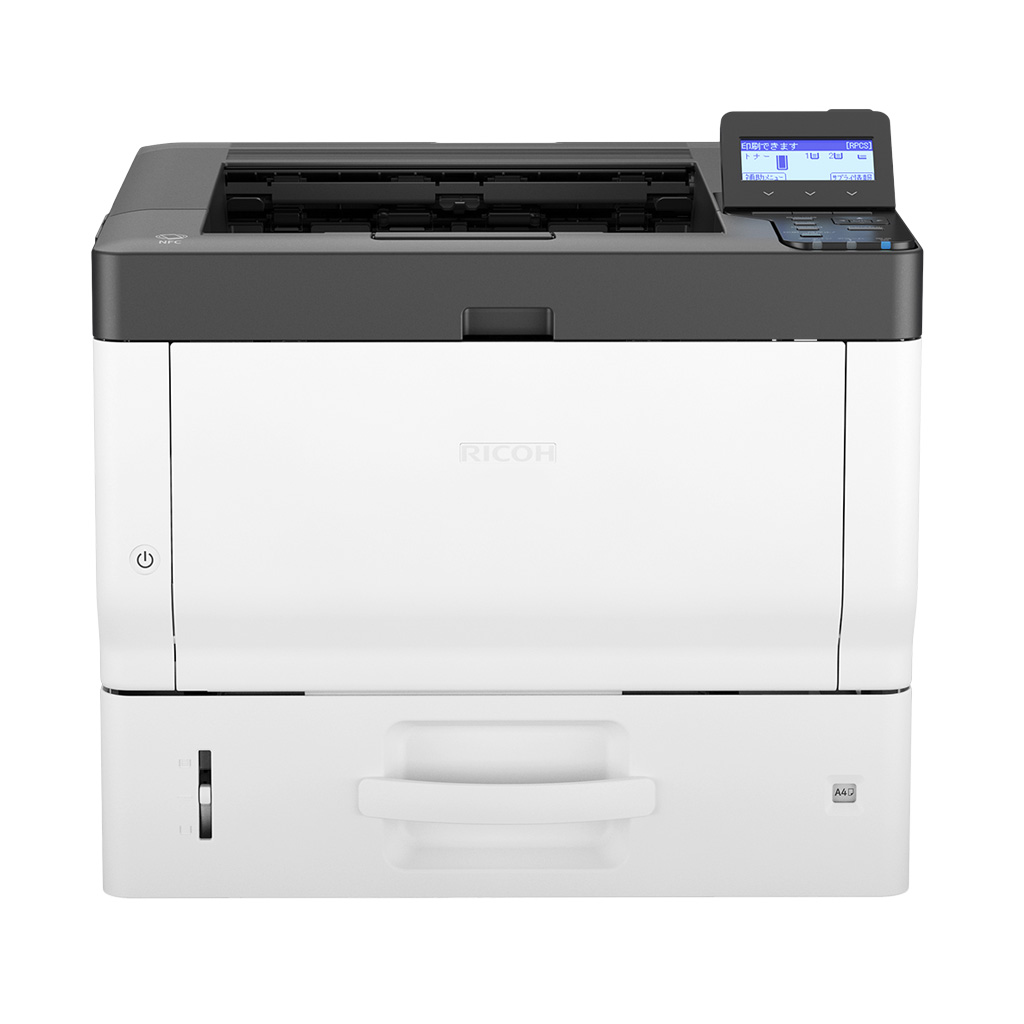

P 501

P 501

The P 501 offers quick print speeds, high resolution output, and a range of workflow improvements to boost efficiency and productivity.

It can handle heavy paper weights up to 256 g/m2, and supports maximum paper input capacity of 2,100 sheets, providing longer uninterrupted print runs.

It also comes with PostScript 3 and PDF Direct emulation as standard, and improved toner, allowing customers to produce professional documents accurately out of the box.

Paper Feed Unit PB1110

Optional 1-tray paper feed unit that increases the paper capacity of the device.

Capacity: 250 sheets
Paper size: A6–A4, B6–B5
Paper weight: 52–220 g/m2
Dimensions (W x D x H): 370 x 392 x 95 mm
Weight: 4.8 kg
Power consumption: 17 W

Notes:
Paper Feed Unit PB1110
Paper Feed Unit PB1120

Optional 1-tray paper feed unit that increases the paper capacity of the device.

Capacity: 500 sheets
Paper size: A6–A4, B6–B5
Paper weight: 52–220 g/m2
Dimensions (W x D x H): 370 x 392 x 124 mm
Weight: 5.5 kg
Power consumption: 19 W

Notes:
Paper Feed Unit PB1120

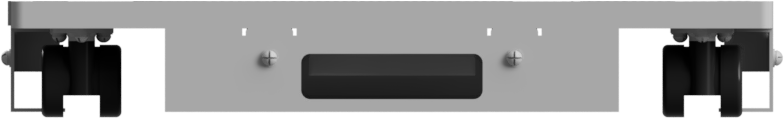

Caster Table Type M34

Provides a base with casters (wheels) to easily move the device on a floor standing configuration.

Dimensions (W x D x H): 420 x 490 x 64 mm
Weight: 7.3 kg

Caster Table Type M34
PostScript 3 Unit Type P18
Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex colour and PDF files.
IPDS Unit Type P18
Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.
XPS Direct Print Option Type P18
Allows users to print XPS format directly from the printer, without using an XPS-based driver.
Hard Disk Drive Option Type P18
The 320 GB Hard Disk Drive (HDD) is required for Locked/Hold/Stored Print. Data Overwrite and Encryption are available when the HDD is installed.
IEEE 1284 Interface Board Type M19
Allows users of older PC technology to connect to the latest printers and MFPs and access advanced printing features.
IEEE 802.11 Interface Unit Type M24
Enables WiFi connectivity and wireless printing.
Notes:
Cannot be installed with IEEE 1284 Interface Board Type M19
USB Device Server Option Type M19A
An interface board used to add an extra Ethernet port to the device. Once installed, users can connect two Ethernet cables simultaneously—one to the device's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option.
Unicode Font Package for SAP 1 Licence
Supports multilingual data without restrictions.
Notes:
By choosing this option the Hard Disk Drive Option Type P18 will be added to the configuration.
Unicode Font Package for SAP 10 Licence
Supports multilingual data without restrictions.
Notes:
By choosing this option the Hard Disk Drive Option Type P18 will be added to the configuration.

Standard inclusions

  • Tiltable 4-line LCD display
  • Mobile printing
  • PostScript3 emulation
  • 500-sheet input tray
  • 100-sheet bypass tray

Current configuration

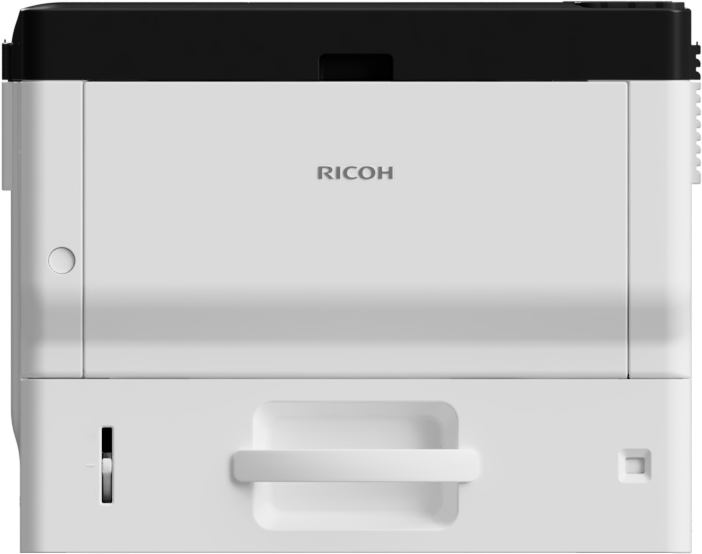

P 501
375 mm x412 mm x311 mm (W x D x H)
19.3 kg
Selected Options:
    P 501
