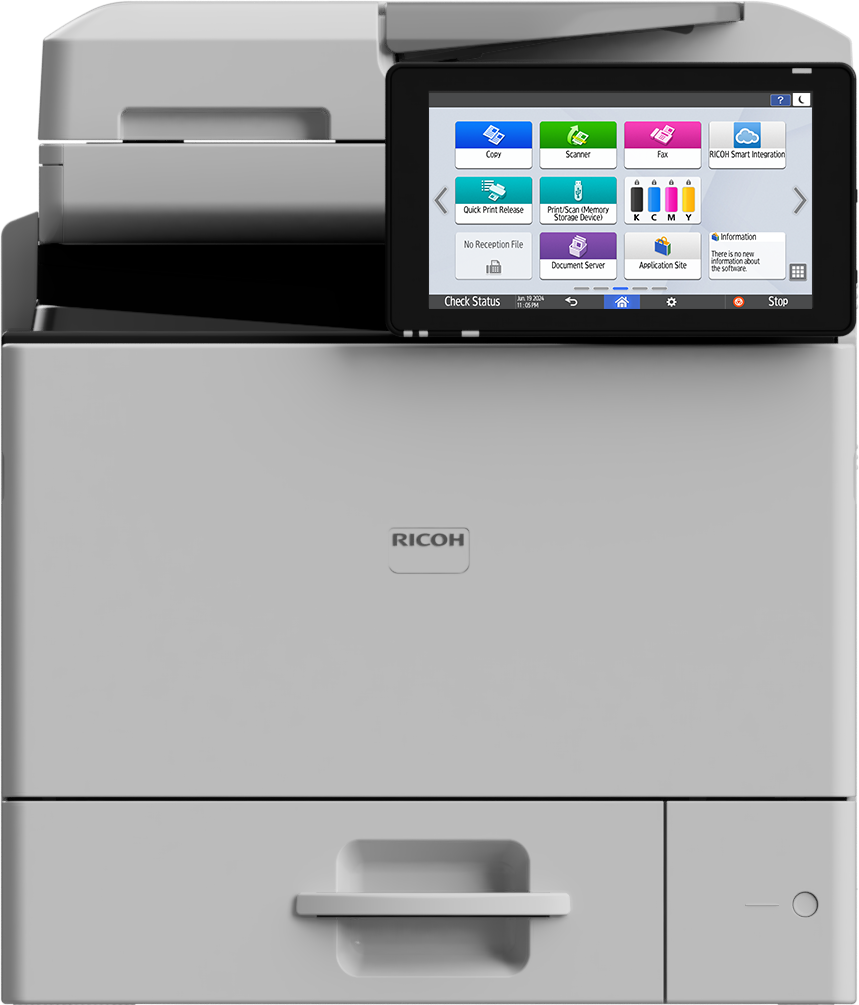

The IM C401F delivers crisp 1,200 x 1,200 dpi resolution prints at 43 ppm (black and white) and 40 ppm (colour) speeds, ensuring seamless productivity in the modern workplace. Its 10.1” Smart Operation Panel (G3) provides an intuitive, touch-friendly interface, aligning with Ricoh’s A3 MFPs for a consistent user experience.
With WiFi connectivity as standard, the IM C401F enables effortless mobile printing and scanning, while advanced security features, such as Trusted Platform Module (TPM) 2.0, WiFi Protected Access (WPA) 3 encryption, and Transport Layer Security (TLS) 1.3, help safeguard sensitive business data.
Other notable highlights are a 150,000-sheet duty cycle, Single-Pass Document Feeder (SPDF) as standard, and a mainframe built with 10% post-consumer recycled plastic.

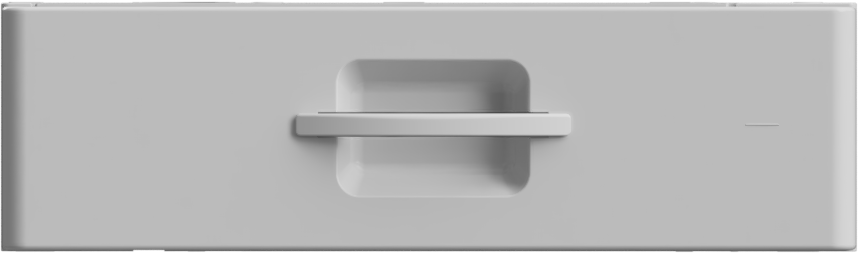

Paper Feed Unit PB1230
Optional 1-tray paper feed unit that increases the paper capacity of the device.
Capacity: 550 sheets Paper size: A4 SEF–A5 SEF Paper weight: 60–163 g/m2 Dimensions (W x D x H): 498 x 552 x 15 mm Weight: 10.7 kg Power consumption: 17 W
Notes:

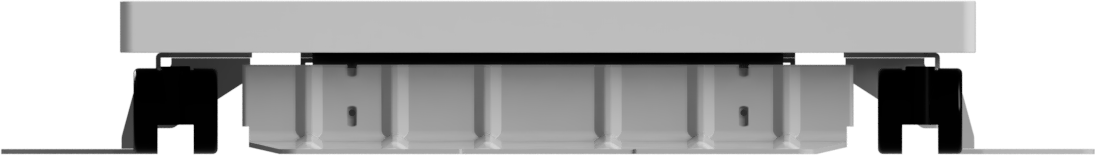

Caster Table Type M59
Provides a base with casters (wheels) to easily move the device on a floor standing configuration.
Dimensions (W x D x H): 637 x 660 x 89 mm Weight: 13 kg
1 Bin Tray BN1050
Collects output from a device and usually fits inside the face-down output tray.
Capacity: 100 sheets Paper size: A5 SEF–A4 SEF Paper weight: 60–163 g/m2 Dimensions (W x D x H): 566 x 641 x 289 mm Weight: 7 kg Power consumption: 1 W
Fax Connection Unit Type M59
Enables users to send and receive faxes on a sub-MFP via a fax-enabled main MFP. This option has to be installed in both the main MFP and sub-MFP(s) needing remote fax.
File Format Converter Type M19
Allows users to save copy and print jobs stored on the document server to a computer.
Notes:
Cannot be installed with Device Server Option Type M52
PostScript3 Unit Type M59
Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex PDF files.
Device Server Option Type M52
An interface board used to add an extra Ethernet port to the device. Once installed, users can connect two Ethernet cables simultaneously—one to the device's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option.
Notes:
Cannot be installed with File Format Converter Type M19
NFC Card Reader Type M52
Ricoh card reader that supports authentication via Near Field Communication (NFC) technology.
Card Reader Cover Type M52
For use with third party card reader solutions. The Card Reader Cover slots into the right-hand side of the Smart Operation Panel. A card reader is not included. Not all card readers may be supported.
Optional Counter Interface Unit Type M12
Used with external third party counting devices for accounting and charge-back purposes.
SSD Option Type M52 1TB
Optional SSD to increase document storage capacity.
Notes:
Cannot be installed with HDD Option Type M52 320 GB
HDD Option Type M52 320 GB
This optional HDD is required to comply with Common Criteria Certification IEEE2600.2. Standard SSD complies with Common Criteria Certification PP HCD v1.0. This option replaces the standard 256 GB SSD.
