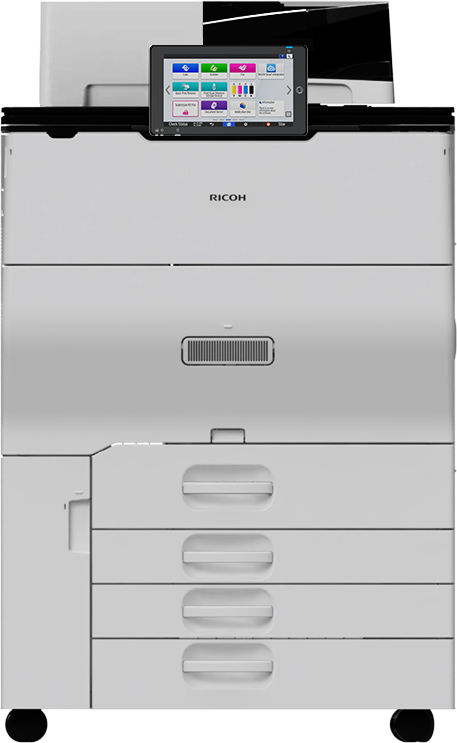

Designed for high-volume office environments, the IM C6510 delivers fast, reliable performance with output speeds of up to 65 ppm. Combining copy, print, and scan capabilities as standard (fax optional), it’s built to enhance productivity across the workplace.
The IM C6510 is equipped with a new-generation Single-Pass Document Feeder (SPDF), which offers faster scanning and improved efficiency. Meanwhile, the intuitive 10.1" Smart Operation Panel (G3) features a responsive capacitive touchscreen and Android-based interface for seamless user interaction.
Offering a range of input and finishing options—including large capacity paper trays, finishers with higher stacking capacity, and unique water-based stapleless binding—the IM C6510 supports flexible, in-house document production. Plus, with 33.38% post-consumer recycled plastic in its housing and energy-efficient operation, it’s a smart choice for sustainability-focused businesses.
Banner Paper Guide Tray Type M26
Extension arm to hold long sheets (banners) on the bypass tray to prevent them from sliding and falling on the floor.
Dimensions: 484 x 442 x 366 mm Weight: 1.2 kg
Page Keeper Type M52
Supports SPDF as a double feed detection unit preventing more than one page from being scanned at a time.

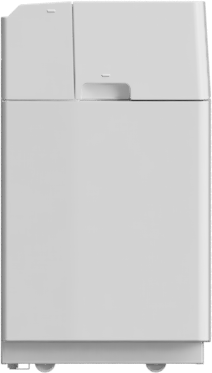

LCIT RT4090
Optional side Large Capacity Input Tray significantly increasing the capacity of the device.
Capacity: 4,400 sheets Paper size: A4 LEF, B5 LEF Paper weight: 52–216 g/m2 Dimensions (W x D x H): 352 x 540 x 625 mm Weight: 22 kg or less Power consumption: 50 W
Notes:
Cannot be installed with LCIT RT5180

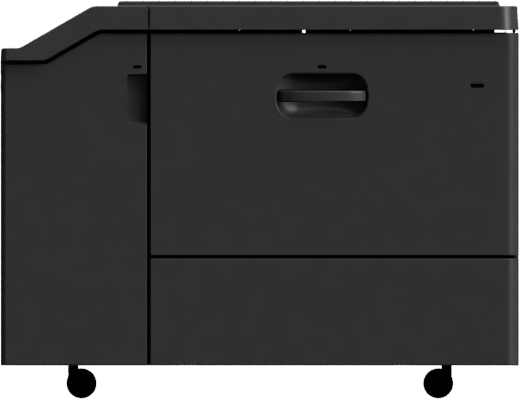

LCIT RT5180
Optional Large Capacity Input Tray significantly increasing the capacity of the device.
Capacity: 2,200 sheets—0.10 mm paper thickness; 2,000 sheets—0.11 mm paper thickness Paper size: A5 SEF/LEF–A3_SEF, HLT SEF/LEF–13” x 19.2”, postcard (100 mm width), A6 SEF, B6 SEF Custom size: 100–330.2 mm x 139.7–487.7 mm Paper weight: 52.3–300 g/m2 Dimensions (W x D x H): 869 x 730 x 658 mm Weight: 83 kg or less Power consumption: 85 W or less
Notes:
Cannot be installed with LCIT RT4090,8 1/2" x 14" Paper Size Tray Type M60
8 1/2" x 14" Paper Size Tray Type M60
Enables feeding of 8.5" x 14" and 8.5" x 11" SEF, and A4 and B4 SEF paper through a Large Capacity Tray (LCIT).
Capacity: 2,750 sheets Paper size: 8.5" x 14" SEF, 8.5" x 11" SEF, A4 SEF, B4 Paper weight: 52.3–216 g/m2 Dimensions (W × D × H): 150 × 541 × 625 mm Weight: 8.4 kg
Notes:
By choosing this option the LCIT RT4090 will be added to the configuration.
Cannot be installed with LCIT RT5180
A3/11"x17" Tray Unit Type M26
Converts the standard paper input tray from a tandem A4 tray to an A3 tray.
Capacity: 1,000 sheets Paper size: A5–A3, B5–B4 Dimensions (W x D x H): 520 x 514 x 207 mm Weight: 11 kg or less
Tab Sheet Holder M2
Recommended to be used when loading tab stock in the paper trays. Note: Can be used in either Tray 2 or Tray 3, but not both.

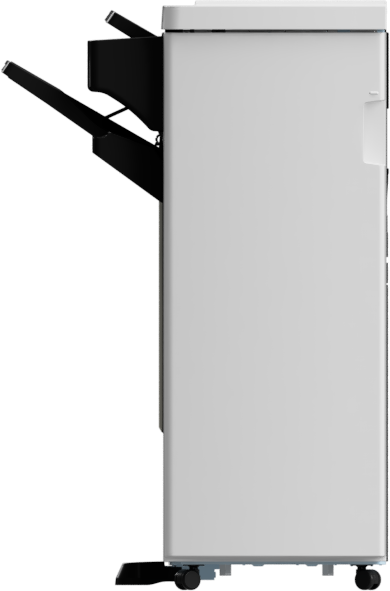

Finisher SR4180
Provides multi-position stapling. Optional hole punching and stapleless binding are supported.
Capacity: 3,000 sheets Paper size: A3–A6 SEF, A4–A5 LEF, B4–B6 SEF, B5, 12” x 18”, SRA3, 13” x 19.2” Paper weight: 52–300 g/m2 Staple capacity: 65 sheets—normal staple, 15 sheets—stapleless staple (corner), 12 sheets—stapleless staple (2 spots) Staple positions: Top, bottom, top-slant, bottom-slant, 2 spots—normal staple; Top slant, 2 spots—stapleless staple Staple paper weight: 52–105 g/m2—normal staple; 52–80 g/m2—stapleless staple Optional Punch Unit PU3110 available Optional Stapleless Binding Unit Type 16 available Dimensions (W x D x H): 657 x 730 x 980 mm Weight: 40 kg; 43 kg—with punch unit Power consumption: 67 W
Notes:
Cannot be installed with Booklet Finisher SR4190,Finisher SR4170,Copy Tray Type M42,Punch Unit PU5050 EU,Punch Unit PU5050 NA,Cooling Fan Unit Type M31

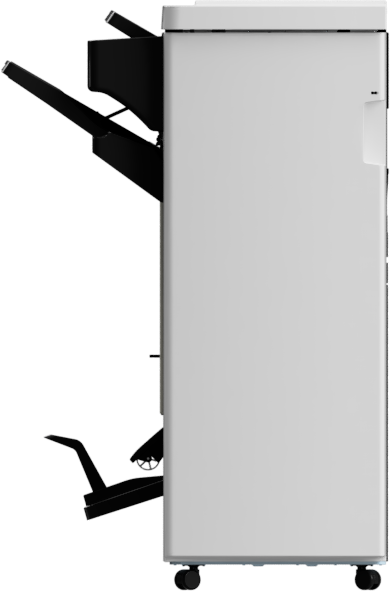

Booklet Finisher SR4190
Allows documents to be professionally finished. Ideal for the production of program guides, instruction sheets, newsletters, and meeting agendas. Offers optional hole punching. Stapleless binding is supported with an optional stapleless unit.
Capacity: 3,000 sheets Paper size: A3–A6 SEF, A4–A5 LEF, B4–B6 SEF, B5, 12” x 18”, SRA3, 13” x 19.2” Paper weight: 52–300 g/m2 Staple capacity: 65 sheets—normal staple, 20 sheets—saddle stitch staple, 15 sheets—stapleless staple Staple positions: Top, bottom, top-slant, bottom-slant, 2 spots Staple paper weight: 52–105 g/m2—normal staple; 64–105 g/m2 (plain paper), 81.4–105 g/m2 (coated paper)—saddle stitch staple; 52–80 g/m2—stapleless staple Optional Punch Unit PU3110 available Optional Stapleless Binding Unit Type 16 available Dimensions (W x D x H): 657 x 730 x 980 mm Weight: 60 kg; 62 kg—with punch unit Power consumption: 67 W
Notes:
Cannot be installed with Finisher SR4180,Finisher SR4170,Copy Tray Type M42,Punch Unit PU5050 EU,Punch Unit PU5050 NA,Cooling Fan Unit Type M31

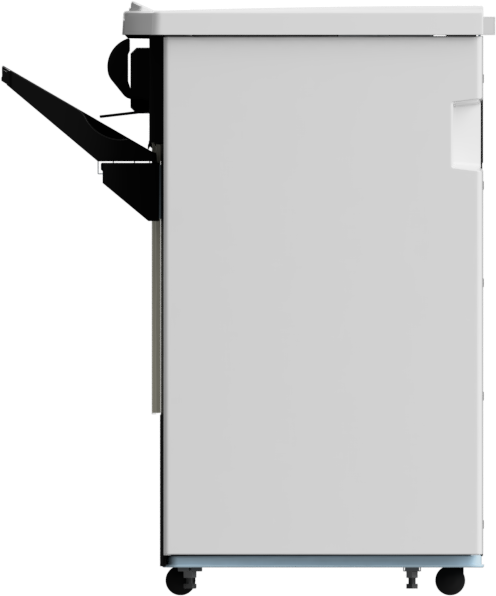

Finisher SR4170
Provides multi-position stapling and optional hole punching.
Capacity: 3,000 sheets Paper size: A3–A6T, B6T, 12” x 18", SRA3, 13” x 19”, 100 mm x 148 mm (Official Postcard)
Paper weight: 52–300 g/m2
Staple capacity: 50 sheets (A3, B4); 100 sheets (A4, B5) Staple positions: Top, bottom, 2 spots, bottom slant Staple paper weight: 64–80 g/m2 Optional punch unit PU5050 available Dimensions (W x D x H): 806 x 730 x 980 mm Weight: 77 kg or less Power consumption: 100 W
Notes:
Cannot be installed with Finisher SR4180,Booklet Finisher SR4190,Mail Box CS4020,Output Jogger Unit Type M52,Stapleless Binding Unit Type S16,Copy Tray Type M42,Punch Unit PU3110 NA,Punch Unit PU3110 EU,Cooling Fan Unit Type M26

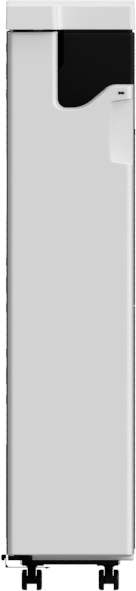

Multi-Folding Unit FD4030
For creating professional-looking output with a number of folding patterns.
Folding types: Single-sheet mode Z-fold, Half-fold, Letter fold-in, Letter fold-out Paper weight: 64–105 g/m2 Multiple-sheet mode Letter fold-in, Letter fold-out—up to 3 sheets Paper weight: 64–80 g/m2
Paper size: A3, A4, B4, DLT, Legal, LT, 8K, 8.5” x 13.4” (Oficio)—Z-fold A3, A4, B4, B5, DLT, Legal, LT, 8K, 8.5” x 13.4” (Oficio), 12” x 18”, 12.6” x 19.2”, 12.6” x 18.5”, 13” x 19.2”, 13” x 19”, SRA3, SRA4—Half-fold A3, A4, DLT, Legal, LT, 8.5” x 13.4” (Oficio)—Letter fold-in A3, A4, B4, DLT, Legal, LT, 8.5” x 13.4” (Oficio)—Letter fold-out
Dimensions (W x D x H): 209 x 730 x 980 mm Weight: 45 kg or less Power consumption: 60 W or less
Notes:
One of the following must also be selected: Finisher SR4180,Booklet Finisher SR4190,Finisher SR4170
Cannot be installed with Copy Tray Type M42

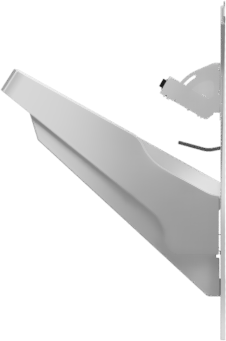

Copy Tray Type M42
A basic tray for printed and copied output when no advanced finishing—including stapling, hole punching, folding, or booklet making—is required. Output is delivered face down in a neat stack.
Capacity: 500 sheets Paper size: A6–13” x 19.2” Custom size: 90–330.2 mm x 139.7–487.7 mm Paper weight: 52.3–360 g/m2 Dimensions (W x D x H): 350 x 513 x 192 mm Weight: 2.2 kg or less
Notes:
Cannot be installed with Finisher SR4180,Booklet Finisher SR4190,Finisher SR4170,Multi-Folding Unit FD4030,Mail Box CS4020,Output Jogger Unit Type M52,Stapleless Binding Unit Type S16,Punch Unit PU3110 NA,Punch Unit PU5050 EU,Punch Unit PU5050 NA,Punch Unit PU3110 EU,Cooling Fan Unit Type M26,Cooling Fan Unit Type M31
Punch Unit PU3110 NA
Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU5050 EU,Punch Unit PU5050 NA,Finisher SR4170,Copy Tray Type M42,Cooling Fan Unit Type M31
One of the following must also be selected: Finisher SR4180,Booklet Finisher SR4190
Punch Unit PU3110 EU
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU5050 EU,Punch Unit PU5050 NA,Finisher SR4170,Copy Tray Type M42,Cooling Fan Unit Type M31
One of the following must also be selected: Finisher SR4180,Booklet Finisher SR4190
Punch Unit PU5050 NA
Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
Notes:
By choosing this option the Finisher SR4170 will be added to the configuration.
Cannot be installed with Punch Unit PU3110 NA,Punch Unit PU3110 EU,Finisher SR4180,Booklet Finisher SR4190,Copy Tray Type M42,Mail Box CS4020,Output Jogger Unit Type M52,Stapleless Binding Unit Type S16,Cooling Fan Unit Type M26
Punch Unit PU5050 EU
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Notes:
By choosing this option the Finisher SR4170 will be added to the configuration.
Cannot be installed with Punch Unit PU3110 NA,Punch Unit PU3110 EU,Finisher SR4180,Booklet Finisher SR4190,Copy Tray Type M42,Mail Box CS4020,Output Jogger Unit Type M52,Stapleless Binding Unit Type S16,Cooling Fan Unit Type M26

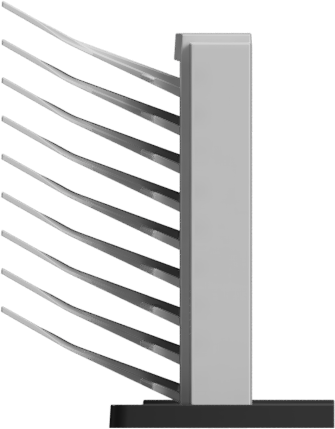

Mail Box CS4020
Notes:
Cannot be installed with Finisher SR4170,Copy Tray Type M42,Punch Unit PU5050 EU,Punch Unit PU5050 NA,Cooling Fan Unit Type M31
One of the following must also be selected: Finisher SR4180,Booklet Finisher SR4190
Stapleless Binding Unit Type S16
Enables staple-free binding of documents. Ricoh's water-based stapleless binding technology reduces need to restock normal metal staples, increases safety, and makes paper recycling easier.
Notes:
Cannot be installed with Finisher SR4170,Copy Tray Type M42,Punch Unit PU5050 EU,Punch Unit PU5050 NA,Cooling Fan Unit Type M31
One of the following must also be selected: Finisher SR4180,Booklet Finisher SR4190
Cooling Fan Unit Type M26
Installed in a finisher to reduce the occurrence of blocking on jobs printed with high toner coverage.
Notes:
By choosing this option the Output Jogger Unit Type M52 will be added to the configuration.
Cannot be installed with Finisher SR4170,Copy Tray Type M42,Punch Unit PU5050 EU,Punch Unit PU5050 NA,Cooling Fan Unit Type M31
One of the following must also be selected: Finisher SR4180,Booklet Finisher SR4190
Cooling Fan Unit Type M31
Installed in a finisher to reduce the occurrence of blocking on jobs printed with high toner coverage.
Notes:
By choosing this option the Finisher SR4170 will be added to the configuration.
Cannot be installed with Finisher SR4180,Booklet Finisher SR4190,Copy Tray Type M42,Mail Box CS4020,Output Jogger Unit Type M52,Stapleless Binding Unit Type S16,Punch Unit PU3110 NA,Punch Unit PU3110 EU,Cooling Fan Unit Type M26
Output Jogger Unit Type M52
A hardware component for finishers to jog paper output into a tidy position on the output tray, making it easy to collect, sort, and stack large print jobs.
Notes:
By choosing this option the Cooling Fan Unit Type M26 will be added to the configuration.
Cannot be installed with Finisher SR4170,Copy Tray Type M42,Punch Unit PU5050 EU,Punch Unit PU5050 NA,Cooling Fan Unit Type M31
One of the following must also be selected: Finisher SR4180,Booklet Finisher SR4190
Fax Option Type M60
Enables fax services: 33.6 kbps, approximately 2 second transmission speed, standard JBIG, and standard 320-page memory.
Includes standard Internet Fax (T.37), LAN fax, IP-Fax (T.38), Fax forwarding to email, and Paperless fax function.
G3 Interface Unit Type M60
Additional G3 line. Up to two units can be installed.
Notes:
By choosing this option the Fax Option Type M60 will be added to the configuration.
Fax Connection Unit Type M60
Enables users to send and receive faxes on a sub-MFP via a fax-enabled main MFP. This option has to be installed in both the main MFP and sub-MFP(s) needing remote fax.
Notes:
By choosing this option the Fax Option Type M60 will be added to the configuration.
Fax Memory Unit Type M52
Additional memory that increases fax memory to 4,800 pages and fax resolution to 400 x 400 dpi.
Notes:
By choosing this option the Fax Option Type M60 will be added to the configuration.
PostScript3 Unit Type M60
Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex colour and PDF files.
Copy Connector M25
Allows two mainframes to be connected for simultaneous copying of the same job.
IPDS Unit Type M60
Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.
File Format Converter Type M19
Allows users to save copy and print jobs stored on the document server to a computer.
Notes:
Cannot be installed with Device Server Option Type M52
OCR Unit Type M52
Scans and creates searchable PDF files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.
Optional Counter Interface Unit Type M12
Used with external third party counting devices for accounting and charge-back purposes.
Device Server Option Type M52
An interface board used to add an extra Ethernet port to the device. Once installed, users can connect two Ethernet cables simultaneously—one to the device's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option.
Notes:
Cannot be installed with File Format Converter Type M19
Unicode Font Package for SAP 1 Licence
Supports multilingual data without restrictions.
Unicode Font Package for SAP 10 Licence
Supports multilingual data without restrictions.
NFC Card Reader Type M52
Ricoh card reader that supports authentication via Near Field Communication (NFC) technology.
Notes:
Cannot be installed with Card Reader Cover Type M52
Card Reader Cover Type M52
For use with third party card reader solutions. The Card Reader Cover slots into the right-hand side of the Smart Operation Panel. A card reader is not included. Not all card readers may be supported.
Notes:
Cannot be installed with NFC Card Reader Type M52
HDD Option Type M52 320 GB
This optional HDD is required to comply with Common Criteria Certification IEEE2600.2. Standard SSD complies with Common Criteria Certification PP HCD v1.0. This option replaces the standard 256 GB SSD.
Notes:
Cannot be installed with SSD Option Type M52 1TB,Enhanced Security SSD Option Type S18
SSD Option Type M52 1TB
Optional SSD to increase document storage capacity.
Notes:
Cannot be installed with HDD Option Type M52 320 GB,Enhanced Security SSD Option Type S18
Enhanced Security SSD Option Type S18
Optional SSD with enhanced security features to increase document storage capacity.
Notes:
Cannot be installed with HDD Option Type M52 320 GB,SSD Option Type M52 1TB
RICOH Antimicrobial Screen Protector Type B
A protective sheet with antimicrobial properties for Ricoh devices equipped with a 10.1-inch Smart Operation Panel version G2.5 (full flat type).
The screen protector works by generating silver ion (Ag+) from the sheet surface which then connects with bacterial enzymes, blocking replication and destroying the harmful cells.
The antimicrobial effect is ISO 22196-certified under the Society of Industrial Technology for Antimicrobial Articles (SIAA).
NOTE: Please check the availability of this option with your local sales company.
