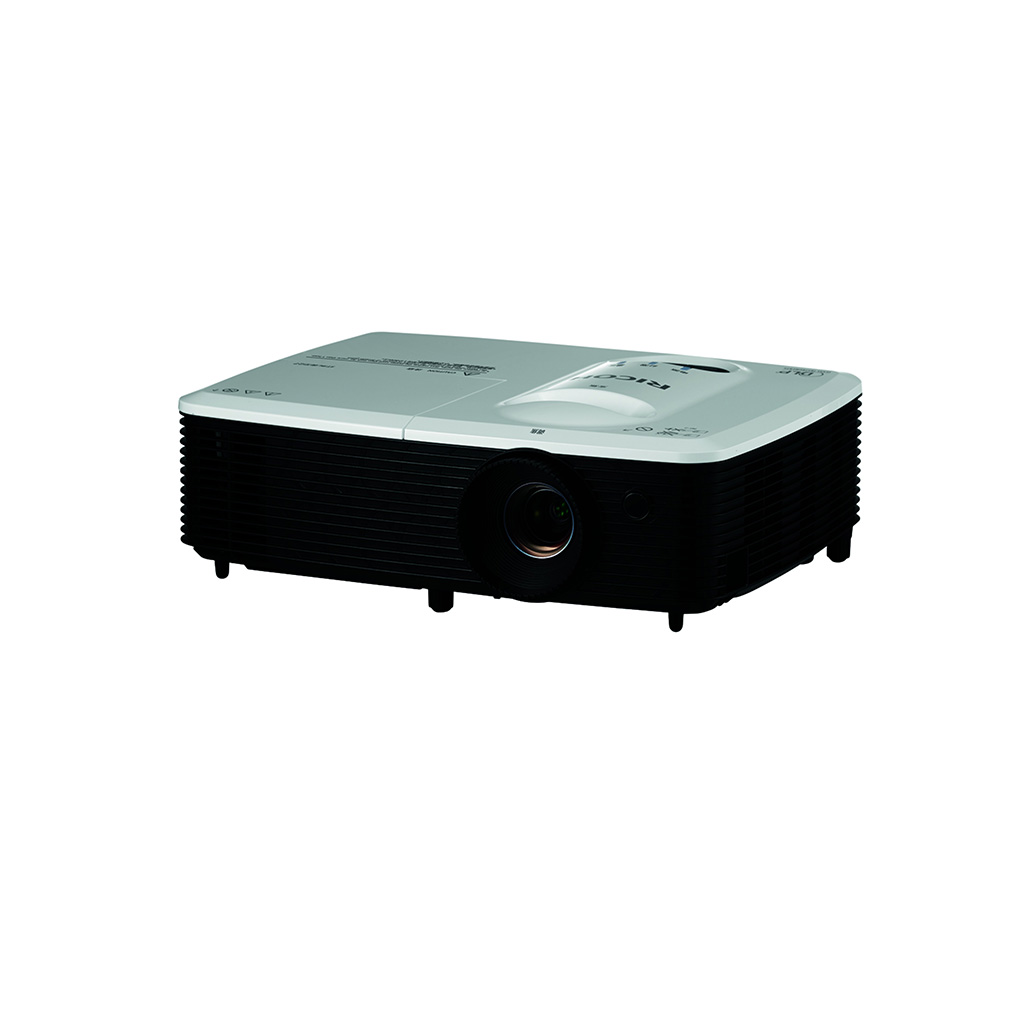

PJ S2440 3,000-lumen entry-level projector

800 x 600 pixels (SVGA)
6,000-hour lamp life (Eco)
30–300-inch projection size
3D support

Press ‘play’ and deliver your presentation with quick and easy projection

Plug it in and start presenting to clients, students or colleagues. The PJ S2440 offers multiple ways to connect for seamless delivery.

Flexible, lightweight design

The PJ S2440 comes in compact, travel‑friendly size, weighing less than 3 kg. Deliver stunning visuals via the HDMI interface, with the option to display in 3D. Present from 1.2 to 13.1 metres from your projection surface. A long lamp life of 6,000 hours offers cost effectiveness for the long run. Choose your input device for easy connection – just plug in and present.

Brilliant display
Bright and high contrast display of 3,000 lumens
Choose your distance
Place from 1.2 to 13.1 metres from the screen
Ports offer choice
Ports include HDMI interface, external monitor as well as external speakers
Long life
Eco Mode reduces energy consumption and extends lamp life

Download PDF brochure

Specifications

Projector type: Entry-level
What's included: Cables
RGB cable
Power cable

Lens cap
Included

Conversion adaptor
Not available

Carrier bag
Not available

Remote mouse receiver
Not available

Remote control
Standard

Battery for remote control
AAA size included

CD-ROM content
User Manual (PDF)
Projector management software

Physical dimensions (WxDxH)—mainframe: 298 x 237 x 101 mm
Weight—mainframe: 2.6 kg or less

Projection system: DLP
Contrast: 2,200:1—Native Mode
10,000:1—High Contrast Mode
Aspect ratio: 4:3
Brightness: 3,000 lumens
Resolution: 800 x 600 pixels (SVGA)
Light source life: 5,000h/6,000h (Eco)
Lamp type: High-pressure mercury lamp
Lamp wattage: 190 W
Lens type: Built-in
Lens focal length: f:21.8–24 mm
Lens aperture: F:2.41–2.55
Zoom type: Manual
Zoom ratio: 1.1x
Uniformity: 80%—standard, 65%—minimum
Projection size: 30–300 inches
Projection distance: 1.19–13.11 m
Projection ratio: 1.95—2.15:1
Tilt angle: 8°—mechanical
Keystone correction: Manual—vertical ±40°
Input signals: NTSC, PAL, SECAM
3D support: DLP Link, Blu-ray 3D
Speaker: 2 W, mono
Other supported features: Natural Colour Enhancer (NCE), AV mute (blank), freeze, resize (magnify), Wall Colour Mode, firmware update via 9-pin RS-232C port, inlet lamp mesh, thermal switch

Interfaces - standard

Computer IN
Mini D-SUB 15 pin x 1

Composite video terminal
Yes

S-video terminal
Not available

USB terminal
USB Type A (Firmware update)

Video terminal
RCA 1-pin x 1

Audio input terminal
Mini jack 3.5 mm x 1

Audio output terminal
Mini jack 3.5 mm x 1

Service terminal
RS-232C 9-pin x 1

Digital terminal
HDMI x 1

Network capable

No

Kensington lock: Yes
Password protection of device: Yes

Supported languages: Menu languages
Japanese, English, German, French, Italian, Spanish, Portuguese, Simplified Chinese, Traditional Chinese, Swedish, Polish, Russian, Turkish, Dutch, Danish, Norwegian, Arabic, Indonesian, Thai

User manual languages
English, German, French, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Swedish, Polish, Russian, Turkish, Dutch, Danish, Norwegian, Arabic, Indonesian, Thai

Quick Start Guide languages
English, German, French, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Arabic

Power source: 100–240 V, 50/60 Hz
Power consumption: 255 W—Full Mode
210 W—Eco Mode
0.5 W—Standby Mode
Sound power level: 34 dB—Standard
31 dB—Eco Mode
Safety standards: IEC60950-1 (CB attestation)
TUV Bauart
BIS (India)
RPC (Taiwan)
Electromagnetic Compatibility (EMC) standards: EN55024 (CE Mark)
AS/NZS CISPR22 (RCM)
EN-55024:2010
EMC:CISPR22
Operating environment: Operating environment
5–40ºC temperature
80% humidity

Storage environment
-20–60ºC temperature
80% humidity
Other environmental features: Eco Mode

Projection Calculator

Use this convenient tool to estimate the throw distance for selected Ricoh projectors. It is not intended to provide exact measurements.

Please click the link to visit the Projection Calculator.
