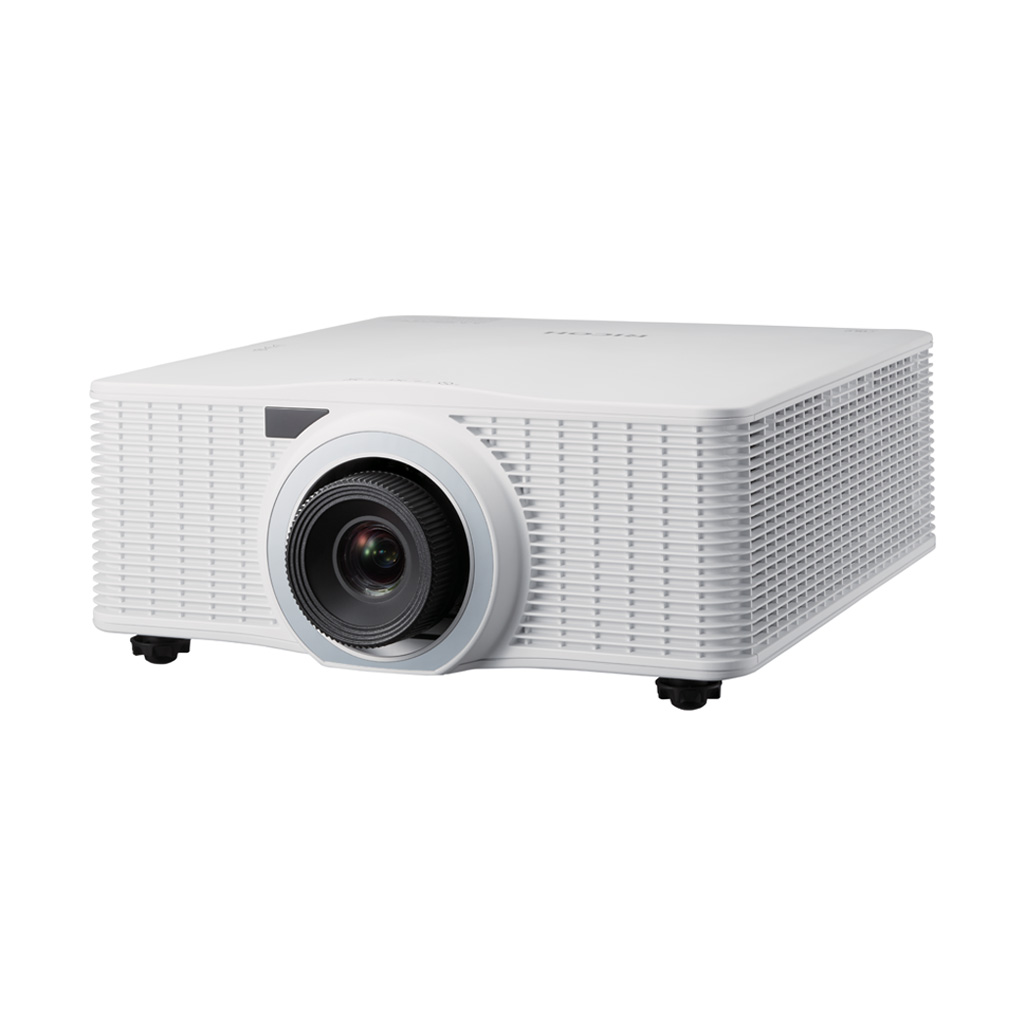

PJ WUL6281 6,400-lumen high-end laser projector

  • 1,920 x 1,200 pixels (WUXGA)
  • 20,000-hour laser life
  • 6 lens choices
  • 360-degree projection

Create presentations with impact in stunning high-resolution detail

Even on large projection surfaces such as walls, ceilings and floors, your presentations are set to stun with amazing clarity and colour even in bright rooms.

Low on maintenance but high on delivery

Instead of traditional mercury lamps, its laser light source extends use up to 20,000 hours. This means less maintenance, reduced mercury light globes in landfills, and quieter noise emission. It’s just as fuss-free in operation, as you can connect it easily with the HDMI and HDBaseT interface ports.

  1. Powerful projection in large venues
    The powerful 6,400-lumen PJ WUL6281 is suitable for large venue installation such as large meeting room and auditorium.
  2. Clarity even in the details
    Even on larges surfaces up to 350 diagonal inches, your presentations will stun with high-quality definition in every detail.
  3. A perfect image at any angle
    The 360 degree and portrait mode projection, colour correction capability and keystone adjustment give you a perfect image every time.
  4. Flexible display options for more creative presentations
    Get creative with how you present your ideas with two images on the same screen in Picture in Picture or Picture by Picture mode.

Download PDF brochure


Specifications

Projector type
High-end laser
What's included

Power cable, VGA cable, 42-key remote control, battery for remote control, Read first manual, Instruction manual as a CD-ROM, lens mount cover

Physical dimensions (WxDxH)—mainframe
484 x 529 x 195 mm
Weight—mainframe
17.5 kg
Projection system
DLP
Contrast
1,200:1—Native
100,000:1—High Contrast Mode
Aspect ratio
16:10
Brightness
6,400 lumens
Resolution
1,920 x 1,200 pixels (WUXGA)
Light source
Laser phosper—blue
Light source life
20,000h
Lens type
Type A0—Ultra-short throw
Type A1—Short throw
Type A2—Wide zoom
Type A3—Standard zoom
Type A4—Long zoom
Type A5—Ultra-long zoom
Lens focal length
Depends on lens in use
Lens aperture
Depends on lens in use
Zoom type
Motorised
Zoom ratio
Depends on lens in use
Uniformity
85%—minimum, 90%—typical
Focus method
Motorised
Colour reproduction
1,073,000,000 colours
Projection size
50–350 inches
Projection distance
0.79–34.77 m—depends on lens in use
Projection ratio
0.36–5.5—depends on lens in use
Tilt angle
± 7.35 degrees—mechanical
Lens shift
Motorised
Vertical—depends on lens
Horizontal—depends on lens
Keystone correction
Vertical +/- 20 degrees
Horizontal +/- 20 degrees
Four corner adjustment
Supported
Projector modes
Normal, rear, ceiling, rear ceiling, portrait
3D support
DLP Link, Blu-ray 3D
Control system
Crestron, PJ Link, AMX Discovery, Extron
Speaker
Not available
Other supported features
AV mute, Freeze, Magnify, Natural Color Enhancer (NCE), Wall colour, Auto Power Off, Direct Power On, Eco Mode, 3D Ready, High Altitude Mode, 360-degree projection, Portrait mode, Picture in picture/Picture by picture
Interfaces - standard

Input
DVI x 1
HDMI x 2
HDBaseT x 1
Computer in x 1 (D-sub 15-pin)
3D Sync in x 1

Output
Computer out x 1 (D-sub 15-pin)
3D Sync out x 1

Control
RS-232C x 1
RJ45 x 1
Wired remote x 1
IR receiver

Kensington lock
Yes
Password protection of device
Yes
Other security features
Security bar
Supported languages

Onscreen menu
English, German, French, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Swedish, Russian, Turkish, Dutch, Arabic, Thai, Korean

Quick Start Guide
English, German, French, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Arabic, Russian, Traditional Chinese

User manual
English, German, French, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Swedish, Russian, Turkish, Dutch, Arabic, Thai, Korean

Standard
Colour Adjustment Tool
Allows to quickly and easily adjust the colour balance of both the presenter's display and the projected image.
The tool can be downloaded from Ricoh website.
Power source
100–240 V
Power consumption

598 W (220 V)—Full Mode
288 W (220 V)—Eco Mode
0.5 W or less—Standby Mode

Sound power level
38 dBA—Standard Mode
36 dBA—Eco Mode
Environmental standards
EU Battery Directive (2006/66/EC)
EU Packaging and Packaging Waste Directive (94/62/EC)
EU WEEE
EU, Australia, New Zealand Restriction of Hazardous Substance (RoHS)
EU REACH
EU ErP (Lot 6)
Safety standards
CE Marking
TUV
Electromagnetic Compatibility (EMC) standards
EN62311 (CE Marking)
EMC Directive
Australia EMC (C-Tick/RCM)
NZ EMC (C-Tick/RCM)
Operating environment

Operating conditions
5–40ºC—temperature
85%—humidity

Storage conditions
-10–60ºC—temperature
90%—humidity

Altitude conditions
0–762 m—5–40ºC, without high altitude mode
762–1,524 m—5–35ºC, without high altitude mode
1,524–3,048 m—5–30ºC, with high altitude mode

Other environmental features
Eco Mode, Auto Power Off, Power on time—12 seconds, Power off time—3 seconds
Projection Calculator

Use this convenient tool to estimate the throw distance for selected Ricoh projectors. It is not intended to provide exact measurements.

Please click the link to visit the Projection Calculator.
