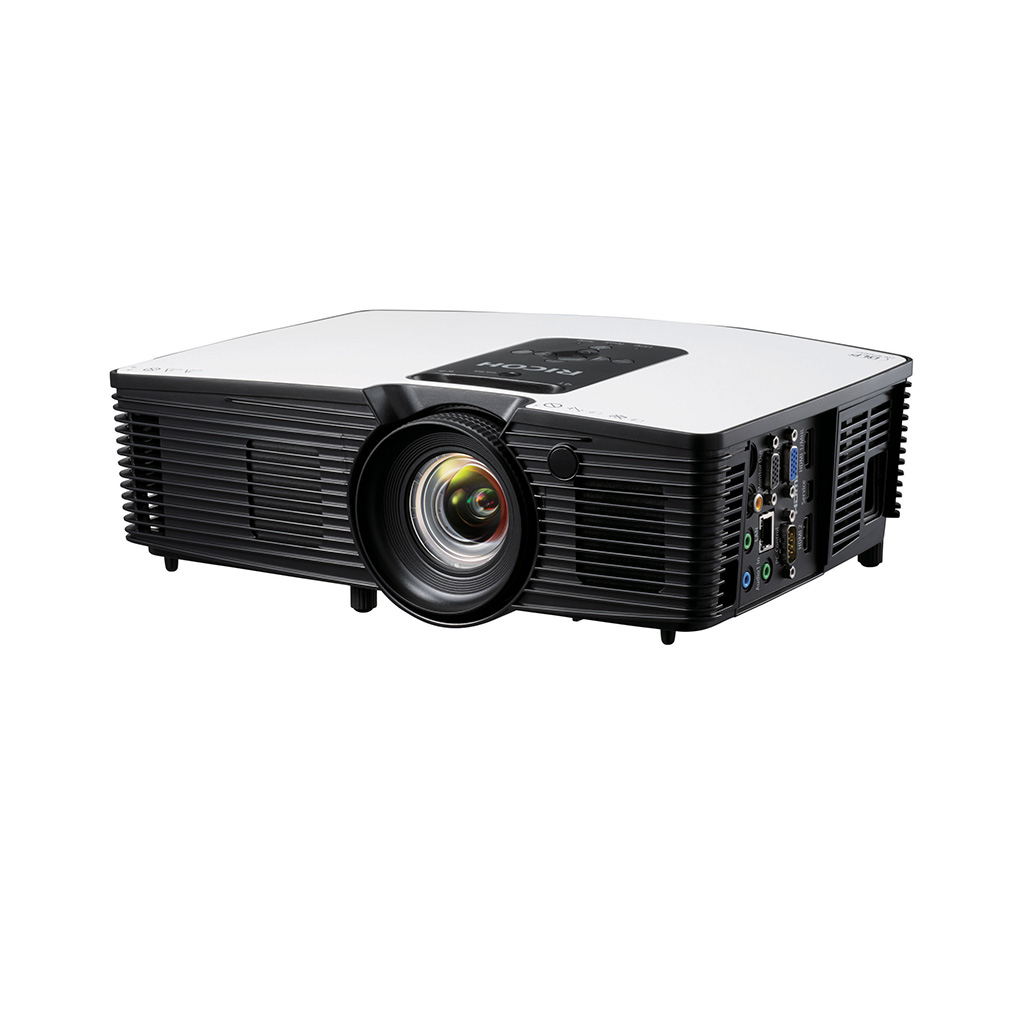

PJ HD5452 3,800-lumen standard projector

  • 1,920 x 1,080 pixels (1080p)
  • 10,000-hour lamp life (Eco)
  • 41–307-inch projection size
  • HDMI/MHL support

Versatile and flexible for every presentation

Ricoh’s PJ HD5452 projector is versatile to project from a wide range of devices from PC, MAC, Blu-ray players and other HD devices for all your HD content in full HD 1080p screening, supported by bright, clear projection of 3,800 lumens. Select from a choice of connectivity options that give you the flexibility to set up your room for wired or wireless presentations and choose how you control your projector’s features and functions, such as lamp hours usage and turn on/off timer.

  1. Stunning presentations
    Showcase full HD presentations in vivid colour and crystal-clear imagery every time.
  2. Versatile set-up in any environment
    Efficiently integrate projectors with any room set-up thanks to Crestron, AMX Device Discovery and Extron compatibility.
  3. Flexible connectivity options
    Connect multiple devices via HDMI, MHL and Wi-Fi all from one compact yet versatile projector.
  4. Present it your way
    Present effortlessly in any space with a 1.36x wide-zoom and vertical lens shift, 4-points correction, vertical and horizontal keystones and geometric correction. We’ve got you covered from every angle.

Download PDF brochure


Specifications

Projector type
Standard
What's included
VGA cable, power cable, remote control, battery for remote control, carrier bag, lens cap, Quick Start Guide, user manual on CD-ROM
Physical dimensions (WxDxH)—mainframe
314.2 x 223.5 x 91.8 mm
Weight—mainframe
Approximately 3.2 kg
Projection system
DLP
Contrast
1,800:1—Native Mode
8,000:1—High Contrast Mode
Aspect ratio
16:9
Brightness
3,800 lumens
Resolution
1,920 x 1,080 pixels (HD)
Light source
High-pressure mercury lamp
Light source life
4,000h/10,000h (Eco)
Lamp wattage
240 W
Lens focal length
f:15.985–21.423 mm
Lens aperture
F:2.51–2.93
Zoom type
Manual
Zoom ratio
1.36x
Focus method
Manual
Projection size
41–307 inches
Projection distance
1.3–7.2 m
Projection ratio
1.06–1.45
Tilt angle
7°—mechanical
Lens shift
Vertical—99–116.7%
Keystone correction
Vertical ±30°
Horizontal ±30°
Four corner adjustment
Supported
Input signals
NTSC, PAL, SECAM
3D support
DLP Link
Control system
PJLink Class 1, Crestron, AMX Device Discovery, Extron
Speaker
Internal, 10 W, mono
Other supported features
Colour control (Hue, saturation, and gain, Memory, Memory by picture mode, Memory by input), Power on by AC input, Skip input (Auto input search), Digital zoom, Freeze, AV mute, Test pattern
Interfaces - standard

Computer IN
D-SUB 15 pin x 1

Computer OUT
D-SUB 15 pin x 1

Video IN
RCA x 1

S-Video
Mini-Din x 1

Digital terminal
HDMI 1.4 x 1
HDMI 1.4/MHL 2.2 x 1

Audio input terminal
Mini jack 3.5 mm x 2

Audio output terminal
Mini jack 3.5 mm x 1

Control terminal
RS-232C 9-pin x 1
USB micro B—for firmware updates
RJ45 LAN

Kensington lock
Yes
Password protection of device
Password lock
Other security features
Security lock hole
Supported languages

On Screen Display languages
English, Japanese, Simplified Chinese, German, French, Italian, Spanish, Portuguese, Polish, Swedish, Thai, Traditional Chinese, Arabic, Indonesian, Turkish, Norwegian, Danish, Dutch, Korean, Finnish, Czech, Hungarian, Russian

User manual languages
English, Japanese, Simplified Chinese, German, French, Italian, Spanish, Polish, Swedish, Thai, Portuguese, Arabic, Norwegian, Dutch, Danish, Russian

Quick Start Guide languages
English, German, French, Italian, Spanish, Portuguese, Arabic

User manual languages on CD
English, Japanese, Simplified Chinese

Power source
100–240 V, 50/60 Hz
Power consumption
360 W—Maximum consumption mode
300 W—Normal operation mode
240 W—Eco Mode maximum
220 W—Eco Mode standard
Less than 0.5 W—Standby
Less than 2 W—Network standby
Sound power level
34 dB—Standard Mode
36 dB—Standard Mode Maximum
27 dB—Eco Mode
29 dB—Eco Mode Maximum
Environmental standards
RoHS
EU REACH
EU Battery Directive (2006/66/EC)
Packaging and Packaging Waste Directive (94/62/EC)
EU WEEE
ErP (Lot6)
Safety standards

CE Marking
TUV

Electromagnetic Compatibility (EMC) standards
EMC Directive
Australia EMC (C-Tick/RCM)
EN62311 (CE)
Operating environment
Temperature
5–40ºC—0–2,500 ft
5–35ºC—2,500–5,000 ft
5–30ºC—5,000–10,000 ft (High Altitude Mode)

Relative humidity up to 80%
Other environmental features
Eco Mode, Power save on no signal
Projection Calculator

Use this convenient tool to estimate the throw distance for selected Ricoh projectors. It is not intended to provide exact measurements.

Please click the link to visit the Projection Calculator.
