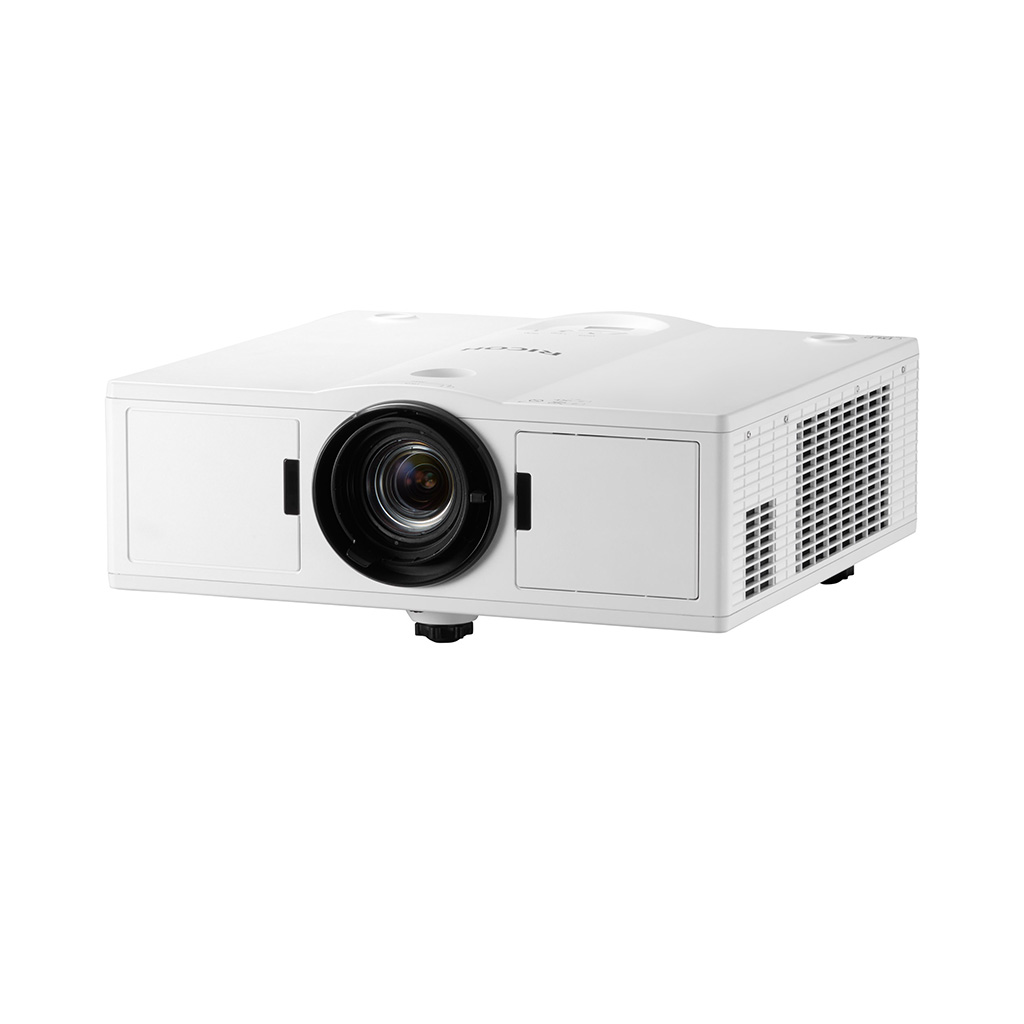

PJ WUL5670 5,200-lumen standard laser projector

  • 1,920 x 1,200 pixels (WUXGA)
  • 20,000-hour laser life
  • 30–300-inch projection size
  • 360-degree projection

Make a brilliant first impression with high impact projection

Versatility in presenting images, videos and presentations. The PJ WUL5670 delivers high quality resolution to your images, videos and presentations.

Long life, low maintenance

Shine a bright light on your presentations, or showcase videos at exhibitions and events. Laser light technology delivers a long life of 20,000 hours. This means less maintenance, quieter noise emission and less cost. There’s no time wasted with a quick start time of less than 10 seconds. Connect to your device seamlessly with the HDBaseT, one cable that works for all and at distances up to 100 metres.

  1. Low maintenance
    Laser light technology eliminates the need to replace mercury lamps
  2. Bright delivery
    Support HD presentations with a 16:10 screen aspect ratio
  3. Say it loud
    Showcase audio with the built in speaker
  4. Flexible delivery
    Multi angle projection for choice of projection surfaces
Download PDF brochure

Specifications

What's included
Cables
RGB cable
Power cable
Micro USB to USB Type A cable (for dongle power)

Remote control
Standard

Battery for remote control
AAA size included

Carrier bag
No

Lens cap
No

CD-ROM contents
User manual (PDF)
Projector management software
Physical dimensions (WxDxH)—mainframe
405 x 387 x 136 mm
Weight—mainframe
11.4 kg
Projection system
DLP
Contrast
1,800:1—Native Mode, 100,000:1—High Contrast Mode
Brightness
5,200 lumens
Resolution
WUXGA (1,920 x 1,200 pixels)
Light source
Laser diode
Light source life
20,000 hours
Lens focal length
17.63–31.36 mm
Lens aperture
2.3–3.15
Zoom type
Manual
Zoom ratio
1.8x
Uniformity
85%—standard, 75%—minimum
Focus method
Manual
Projection size
30–300 inches
Projection distance
1.29–9.17 m
Projection ratio
1.2–2.13
Lens shift
Vertical—20%
Horizontal—±10%
Keystone correction
Vertical—±30°
Horizontal—±30°
Four corner adjustment
Yes
Input signals
NTSC, PAL, SECAM
3D support
Blu-ray 3D, DLP Link
Control system
AMX Discovery, Crestron, PJLink
Speaker
10 W, stereo
Other supported features
360° multi-angle projection, Picture in Picture (PiP), Picture by Picture (PbP), Portrait Mode, Colour adjustment
Interfaces - standard
Computer IN
D-SUB 15 pin x 1

Monitor OUT
D-SUB 15 pin x 1

Audio input terminal
Mini jack 3.5 mm x 1
Microphone x 1

Audio output terminal
Mini jack 3.5 mm x 1

Control terminal
RS-232C x 1 (PC Control)
Vesa miniDIN-3 x 1 (3D sync)
RJ45 LAN x 1
3.55 mm 12 V x 1 (Trigger Out)
3.55 mm wired remote x 1

USB terminal
USB Type A x 2
Mini USB x 1

Digital terminal
HDBaseT x 1
HDMI x 1
HDMI/MHL x 2
Kensington lock
Yes
Password protection of device
For LAN connection
Supported languages
Menu languages
Japanese, English, German, French, Italian, Spanish, Portuguese, Simplified Chinese, Traditional Chinese, Swedish, Polish, Russian, Turkish, Dutch, Danish, Norwegian, Arabic, Indonesian, Thai, Korean, Finnish, Hungarian, Czech

User manual languages
Japanese, English, German, French, Italian, Spanish, Portuguese, Simplified Chinese, Traditional Chinese, Swedish, Polish, Russian, Turkish, Dutch, Danish, Norwegian, Arabic, Indonesian, Thai, Korean, Finnish, Hungarian, Czech

Quick Start Guide languages
English, German, French, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Arabic
Power source
100–240 V, 50/60 Hz
Power consumption
440 W—Maximum
270 W—EcoMax Mode
0.5 W or less—Standby
Sound power level
Normal
37 dB—maximum
35 dB—standard

Eco Mode
31 dB—maximum
29 dB—standard
Environmental standards
RoHS
WEEE
EU REACH
ErP (Lot6)
Taiwan Battery Regulation
Safety standards
CE Marking
CU-TR
PSB (Singapore)
TUV Bauart
BIS (India)
RPC (Taiwan)
Australia IH
Electromagnetic Compatibility (EMC) standards
EMC Directive
AS/NZ EMC (C-Tick/RCM)
EN62311 (CE Mark)
Operating environment
Temperature 5–40ºC
Relative humidity 10–85%
