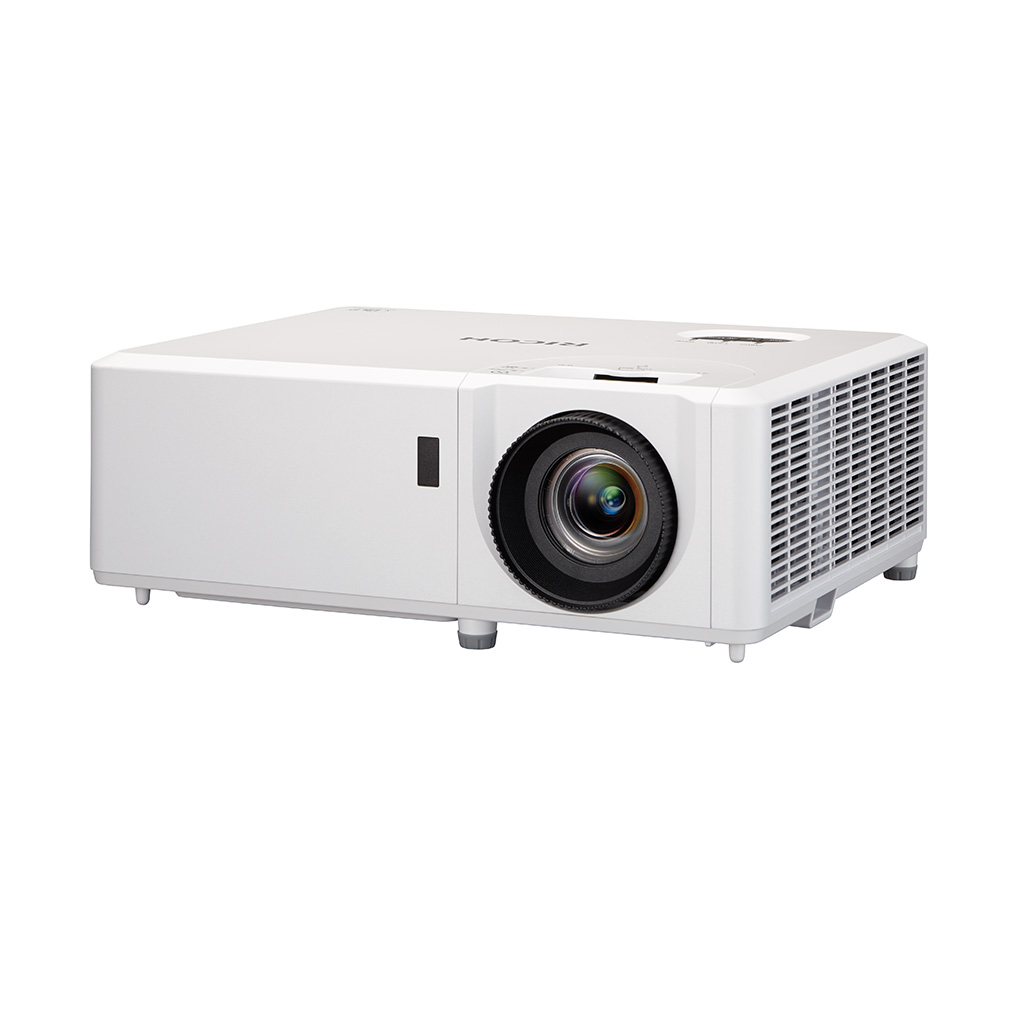

PJ WXL5860 4,700-lumen standard laser projector

  • 1,280 x 800 pixels (WXGA)
  • 20,000-hour lamp life
  • Maintenance-free projection
  • Instant ON
Related Links
Light up your presentations
Ready in an instant, this portable all-in-one solution allows you to take centre stage

Transform your presentations and signage

Ideal in regular meeting rooms and classrooms, the PJ WXL5860 can also be used to create eye-catching digital signage.

Long life, maintenance-free

Shine a bright light on your presentations, or showcase videos at exhibitions and events. Laser light source delivers a long life of 20,000 hours. This means maintenance-free for uninterrupted operation. You can even be ready to present immediately with its quick start time of 10 seconds.

  1. Bright delivery
    Supports HD presentations with 4,700 lumens and a 16:10 screen aspect ratio
  2. Maintenance-free
    Laser light source eliminates the need to replace mercury lamps
  3. Impeccable projection
    Crystal-clear display every time with vertical and horizontal keystone, vertical lens shift and four corner adjustment
  4. Flexible installation
    Multi-angle projection for presentations from any direction

Download PDF brochure

Specifications

Projector type
Standard laser
What's included

Cables
Power cable—1.8 m
VGA cable—1.8 m

Remote control
Standard

Battery for remote control
2 x AAA size included

Carrier bag
No

Lens cap
Included

Quick Start Guide
6 languages

CD-ROM
User manual (PDF)

Physical dimensions (WxDxH)—mainframe
337 x 265 x 108 mm
Weight—mainframe
4.3 kg
Projection system
Standard laser
Contrast
2,000:1—Native Mode
50,000:1—High Contrast Mode
Aspect ratio
16:10
Brightness
4,700 lumens
Resolution
1,280 x 800 pixels (WXGA)
Light source
Laser
Light source life
20,000h
Lens focal length
f:15.985–21.423 mm
Lens aperture
F:2.51–2.93
Zoom type
Digital, manual
Zoom ratio
1:36x
Focus method
Manual
Colour reproduction
92%
Projection size
30–300 inches
Projection distance
1.0–7.2 m
Projection ratio
1.113–1.523
Tilt angle
6°—mechanical
Lens shift
Vertical—manual
Keystone correction
Vertical ±30 degree—automatic
Horizontal ±30 degree—manual
Four corner adjustment
Supported
Projector modes
Normal, Ceiling, Rear, Rear Ceiling
Input signals
NTSC, PAL, SECAM
3D support
DLP Link, Auto, Side-by-side, Top and bottom, Frame sequential
Control system
PJ Link, Crestron, AMX Device Discovery, Extron
Speaker
2 x 8 W, stereo
Other supported features
Instant ON, Quick Power On, Remote ID up to 99, Dust proof design (IP5X), User logo, High contrast mode, Color Control (HSG, Memory, Memory by picture mode, Memory by input), Power on by AC input, Power on by signal input, Sleep timer, Power save on no signal, Skip input (Auto input search), Digital Zoom, Freeze, Mute, Test pattern (white, black, mesh, colour bar), Portrait Mode, 360-degree projection, 1 x IR receiver, 8 m remote control distance
Interfaces - standard

Computer IN
D-sub 15-pin x 1

Computer OUT
D-sub 15-pin x 1

Composite video terminal
Yes

Power out
USB Type A

Audio input terminal
Mini jack 3.5 mm x 1

Audio output terminal
Mini jack 3.5 mm x 1

Microphone
Mini jack 3.5 mm x 1

Control terminal
RS-232C 9-pin x 1
Mini USB Type B x 1
RJ45 LAN x 1

Digital terminal
HDMI1 x 1
HDMI2/MHL x 1

Kensington lock
Yes
Password protection of device
Yes
Other security features
Security lock
Supported languages

On screen display languages
English, Japanese, Simplified Chinese, German, French, Italian, Spanish, Polish, Swedish, Thai, Portuguese, Traditional Chinese, Arabic, Indonesian, Turkish, Norwegian, Danish, Dutch, Korean, Finnish, Czech, Hungarian, Russian

User manual languages
English, Japanese, Simplified Chinese, German, French, Italian, Spanish, Polish, Swedish, Thai, Portuguese, Traditional Chinese, Norwegian, Danish, Dutch, Russian

Quick Start Guide languages
English, German, French, Italian, Spanish, Portuguese

Power source
100–240 V, 50/60 Hz
Power consumption
300 W—Normal Mode, maximum
244.1 W—Normal Mode, 100 V
242.2 W—Normal Mode, 110 V
233.6 W—Normal Mode, 220 V
232.6 W—Normal Mode, 240 V
230 W—Eco Mode, maximum
179.4 W—Eco Mode, 100 V
178.2 W—Eco Mode, 110 V
172.9 W—Eco Mode, 220 V
172 W—Eco Mode, 240 V
Less than 2 W—Network Standby
Less than 0.5 W—Standby
Less than 0.4 W—Standby at 100 V
2.43 Amps rating at 100 V
2.26 Amps rating at 110 V
1.07 Amps rating at 220 V
1.01 Amps rating at 240 V
Sound power level

Normal Mode
34 dB or less—maximum
32 dB or less—typical

Eco Mode
33 dB or less—maximum
31 dB or less—typical

Environmental standards
EU REACH
EU Battery Directive (2006/66/EC)
Packaging and Packaging Waste Directive (94/62/EC) (Europe)
EU WEEE
ErP (Lot6) (Europe)
Safety standards
CE Marking (Europe)
TUV (Europe)
RPC (Taiwan)
DoC (Taiwan)
Electromagnetic Compatibility (EMC) standards
EMC Directive (Europe)
Australia EMC (C-Tick/RCM)
NZ EMC (C-Tick/RCM)
EMF EN62311 (CE) (Europe)
Operating environment
Temperature
0–40ºC—0–762 metres elevation
5–35ºC—763–1,524 metres
5–30ºC—1,525–3,048 metres (with High Altitude Mode)

Humidity
0–85%
Other environmental features
Eco Mode
